Product Description

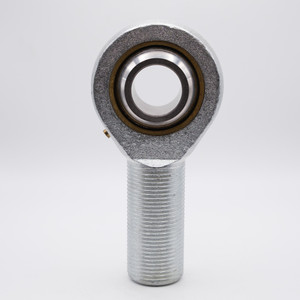

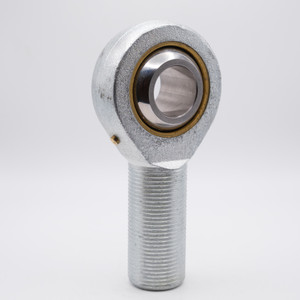

POSB6 Rod-End Bearing
Key Features
POSB6 Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. POSB6 bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank.
Applications / Industries
POSB6 Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, Textile Manufacturing Equipment, Cars, Trucks, Race Cars, Motorcycles, Lawn Tractors, Boats, Industrial Machines, among others.
Product Videos
Custom Field
Inner Diameter 3/8"
Outer Diameter 1"
Overall Height 2-7/16"
Base to Center 1-15/16"
Thread Size -24UNF
Thread Direction Right Hand
Ball Material Chrome Steel SAE-52100
Housing Material Nickel Plated housing
Lubrication Light Oil
Static Load 4,856 lbf
Dynamic Load 2,075 lbf
Country of Origin Japan
Interchange Numbers HM6, HM6G, TRE-6, TRE6N, TRE-6N, MM-6, MM-6Z, POSB6Z
