Product Description

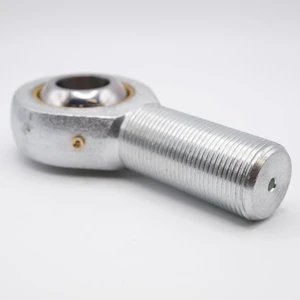

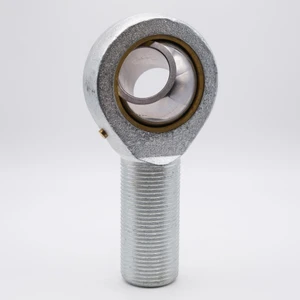

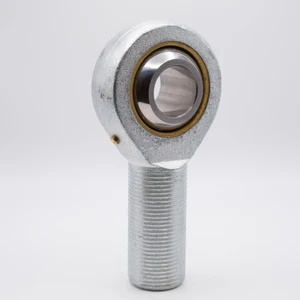

POSB8L Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. POSB8L bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank.
Sizes: 1/2" Bore x 1-1/2" Rod x 1/2-20 Thread Size
Applications: Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Textile Manufacturing Equipment, Conveyor Systems, Pneumatic Cylinders, Construction Equipment, Exercise Machines, Factory Automation, among others.
Product Videos
Custom Field
Inner Diameter 1/2"
Outer Diameter 1-5/16"
Overall Height 3-3/32"
Base to Center 2-7/8"
Thread Size -20UNC
Thread Direction Left Hand
Ball Material Chrome Steel SAE-52100
Housing Material Nickel Plated
Lubrication Light Oil
Static Load 8,138 lbs
Dynamic Load 3,327 lbf
Country of Origin China
Interchange Numbers HML8, HML8G, TREL-8, TREL8N, TREL-8N, MB-8, MB-8Z, POSB8LZ
