Product Description

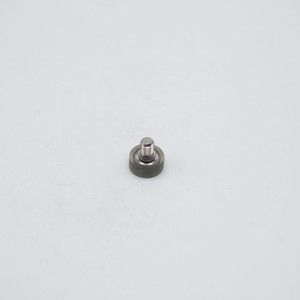

PU69310-4C1L5M4 is a Polyurethane Coated Roller that uses a 693 bearing with a screw attached. This bearing has been pre-lubricated using light oil, allowing for immediate use upon delivery.
Sizes: ID 3mm x OD 10mm x W 4mm = ID 0.118" x OD 0.394" x W 0.157"
Interchange: PU69310-4C1L5M4
Applications: These bearings are primarily used in applications such as Cabinets, Conveyors, Bill Sorting Machines, Currency Counting Machines, Conveyor Belts & ATMs.
Product Videos
Custom Field
Inner Diameter 3mm
Outer Diameter 10mm
Width 4mm
Screw Length 5mm
Screw Width 4mm
Material Chrome Steel SAE-52100 + PU Cover
Lubrication Chevron SRI-2 Grease
Static Load 40 lbf
Dynamic Load 126 lbf
Speed Limit 60,000 RPM
Country of Origin China
Interchange Numbers PU69310-4C1L5M4
