Product Description

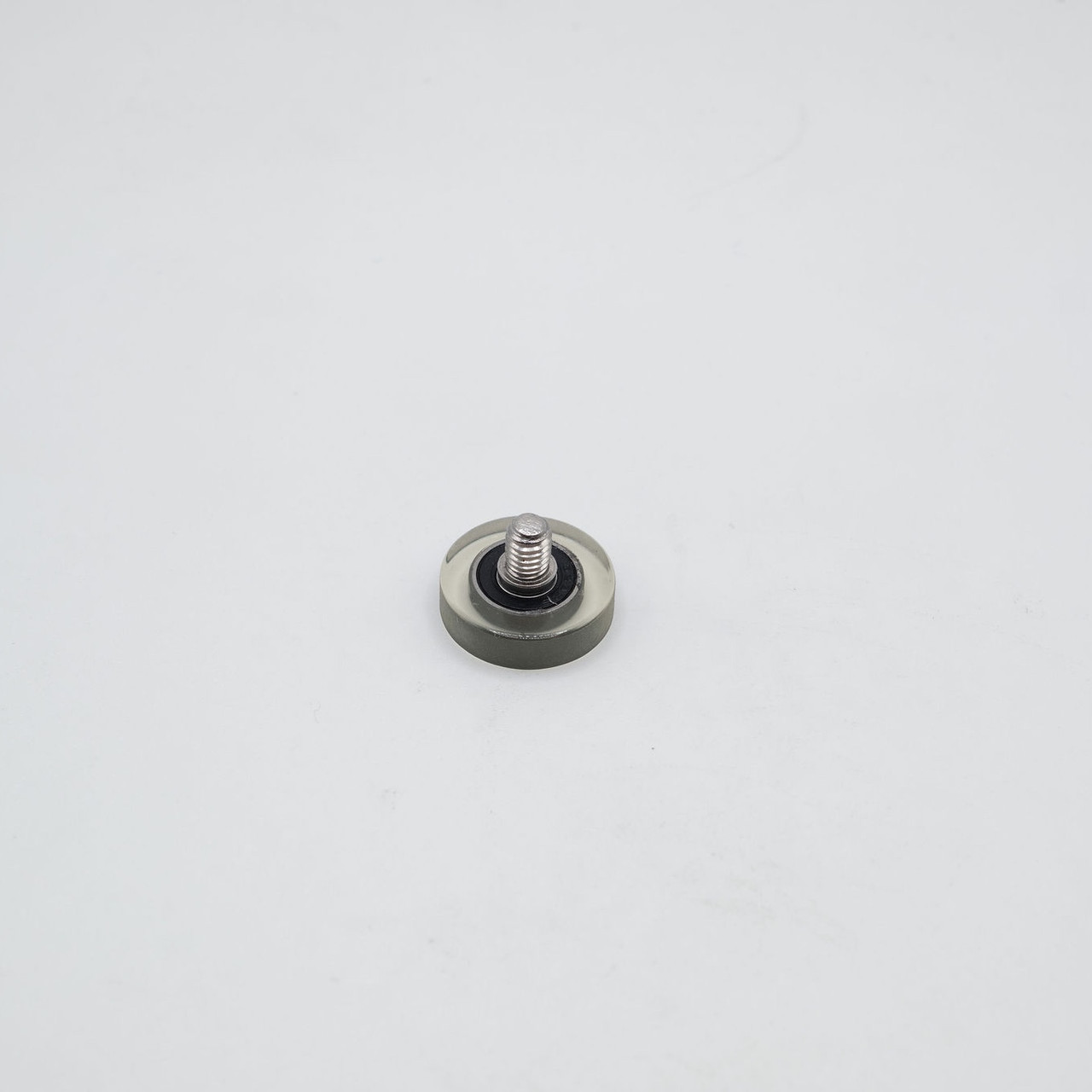

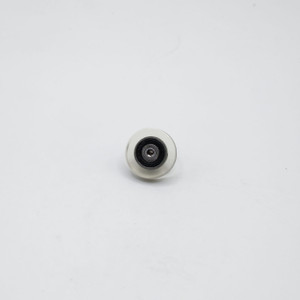

PU69622-5C1L8M6 is a Polyurethane Coated Roller that uses a 696 bearing with a screw attached. This bearing has been pre-lubricated using light oil, allowing for immediate use upon delivery.
Sizes: ID 6mm x OD 22mm x W 5mm = ID 0.236" x OD 0.866" x W 0.197"
Interchange: PU69622-5C1L8M6
Applications: These bearings are primarily used in applications such as Cabinets, Conveyors, Bill Sorting Machines, Currency Counting Machines, Conveyor Belts & ATMs.
Product Videos
Custom Field
Inner Diameter 6mm
Outer Diameter 22mm
Width 5mm
Screw Length 8mm
Screw Width 6mm
Material Chrome Steel SAE-52100 + PU Cover
Lubrication Chevron SRI-2 Grease
Static Load 117 lbf
Dynamic Load 302 lbf
Speed Limit 40,000 RPM
Country of Origin China
Interchange Numbers PU69622-5C1L8M6
