Product Description

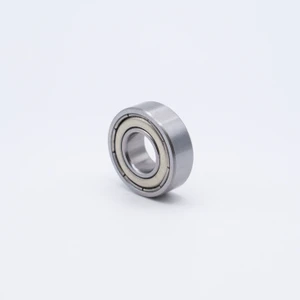

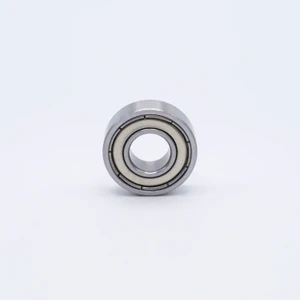

R168-ZZ Mini Ball Bearing
Key Features
R168-ZZ is a Precision Ball Bearing manufactured to have both sides Metal Shielded and is pre-lubricated with grease allowing it to be ready for use upon delivery. Made from Chrome Steel, R168-ZZ is a Miniature Ball Bearing that can withstand both moderate radial and axial loads while providing high performance. Our R Series Inch Sized Miniature Ball Bearings are available with rubber seals, metal shields and open closures.
Match Numbers / Interchange Numbers
RI614ZZ, SSRI-614ZZ, S614CHH, S614C, ULZ8012X, R168SS, R168PP, DDRI164ZZ, DDRI-164ZZ , R168Z , R168 2Z, R168 ZZ , DDRI-614ZZ, SSRI-614ZZ
Applications / Industries
R168-ZZ Miniature ball bearings are widely used in various industries and everyday applications such as Electric Fans, Automotives, RC Cars, RC Planes, RC Helicopters, Industrial & Medical Hand Pieces, Surgical Equipment, Household Electrical Appliances, Trex700, Medical Instruments, Surveillance Systems, Plastic Card Printers, Robotics, Pulmonary Assist Devices, Cryogenic Coolers, Flow Meters, Fuel Control, Gyros, Syncros, Yoyo’s, Servos, and many more.
What are Miniature Ball Bearings?
A Miniature ball bearing is a type of small rolling-element bearing that uses roller balls to separate two “races,” or bearing rings. The key difference between these bearings and many others would be their small size, allowing them to be applied in smaller and tighter lightweight applications. The combination of the roller balls and bearing rings help to reduce surface contact and rotational friction across moving planes to accommodate axial loads.
Miniature Ball bearings help to facilitate motion by distributing loads and reducing friction for applications that have a high-speed requirement, ultimately aiding in extending the working life of your equipment while also effectively saving space in tight applications.
What are Rolling-Element Bearings?
Rolling-element bearings, commonly called rolling bearings, are bearings that carry a load by utilizing “rolling elements” between two concentric, grooved rings called races. The motion of the bearing races allows for the rolling elements to move with very little resistance and with little slide variance.
Some common types of rolling elements include ball, cylindrical, spherical, barrel, needle, spindle, or tapered.
What is the Difference Between Open, Shielded, and Sealed Rolling Bearings?
The main difference between open and sealed/ shielded bearings is the application of lubrication. The main difference between sealed and shielded bearings is the presence of a protective enclosure.
- Sealed and shielded bearings are both lubricated with grease in the bearing factory. However, a rubber sealed bearing protects the bearing by using a seal that contacts the inner and outer race. This provides superior protection at the cost of operating speed and temperature.
- Open bearings are meant to be lubricated with light oil, with periodic reapplication of lubrication, based on use.
- Shielded rolling bearings contain an enclosure that helps protect the working parts of the bearing from environmental debris that may be introduced and would otherwise reduce the ball bearing speed and lifespan. This metal shield is stamped onto the bearing and only contacts the outer ring, this allows for protection without sacrificing operating speed or temperature.
