Product Description

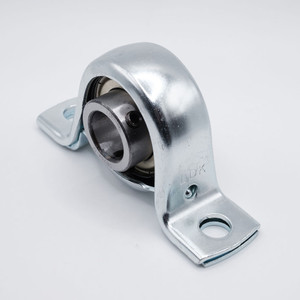

RSBPP201-8 Pressed Steel AC Bearing Unit
Key Features
RSBPP201-8 is a Pressed Steel AC Bearing Unit with Set Screws for locking onto a shaft. This bearing features an HVAC Rubber Cushioned Insert Ball Bearing with two set screws located on the extended inner ring of the bearing. This bearing is ideal for applications in HVAC Systems due to its ability to reduce vibration and is pre-lubricated with grease, ensuring it is ready for immediate use upon delivery.
Applications / Industry
RSBPP201-8 Press Steel AC Bearing Units are used in a variety of applications such as HVAC Systems, Air Conditioning Units, Industrial Fans, Centrifugal Blowers, Automotive Compressors, Air Handling Units, among others.
Product Videos
Custom Field
Inner Diameter 1/2"
Overall Length 98mm
Overall Height 50.4mm
Bolt Hole to Bolt Hole 76mm
Base to Center 25.4mm
Housing Material Pressed Steel
Insert Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 1,075 lbf
Dynamic Load 2,147 lbf
Speed Limit 8,800 RPM
Country of Origin China
Interchange Numbers RSBPP201-8
