Product Description

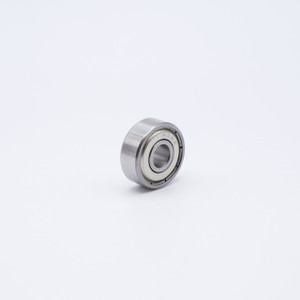

SS695-Z Stainless Steel Miniature Ball Bearing
Key Features
S695-Z is a Stainless Steel Miniature Ball Bearing manufactured to have one side metal shielded, one side Open, and is pre-lubricated with light oil, allowing it to be ready for use upon delivery. Stainless Steel Ball Bearings are highly resistant to corrosion from moisture and can run efficiently at much higher temperatures. Our S600 Series Bearings have Larger OD which assists in high speed & larger load application.
Applications / Industries
S695-Z Stainless Steel Miniature Ball Bearings are used in a range of applications and are ideal for limited space applications including Remote Controlled Cars/Trucks, Sewing Machines, Lab Equipment, Medical Equipment, Power Tools, Electric Motors, and Kitchen Drawers, among others.
Product Videos
Custom Field
Inner Diameter 5mm
Outer Diameter 13mm
Width 4mm
Closure Type One Side Metal Shielded
Material Stainless Steel AISI-440C
Lubrication Chevron SRI-2 Grease
Static Load 97 lbf
Dynamic Load 243 lbf
Speed Limit 53,000 RPM
Country of Origin China
Interchange Numbers SMR695-Z, SS695Z, S695Z, DDR-1350Z, DDR1350Z, SSR1350-Z, SSR-1350Z
