Product Description

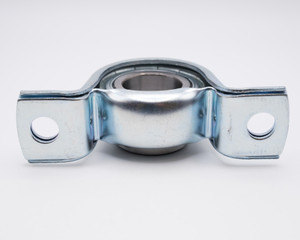

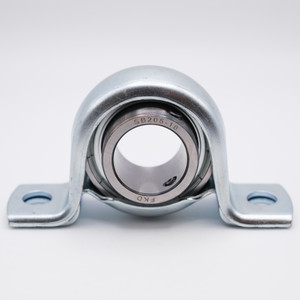

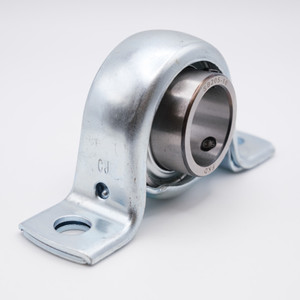

SBPP202 Pillow Block Bearing
Key Features
SAPP202 is a Mounted Block Unit Bearing which has a combination of a pressed steel pillow block bearing and a light duty set screw insert ball bearing. This unit is equipped with two set screws, that are positioned on the extended inner ring of the insert ball bearing, to lock and attach to the shaft. Our SBPP200 Series come pre-lubricated with grease to allow it to be ready to use upon arrival.
Applications / Industries
SAPP202 Pressed Steel Mounted Blocks are used in a variety of applications such as Agriculture, Automotive, Printer, Pump, Sporting and Consumer Goods, Construction, Manufacturing Equipment, Conveyor and Fan Assemblies, and light and heavy industrial use.
Product Videos
Custom Field
Inner Diameter 15mm
Overall Length 3-25/64"
Overall Height 1-23/32"
Bolt Hole to Bolt Hole 2-43/64"
Base to Center 7/8"
Housing Material Pressed Steel
Insert Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 1,075 lbf
Dynamic Load 2,145 lbf
Speed Limit 8,800 RPM
Country of Origin China
Interchange Numbers AELPP202, KHPP202, PB15
