Product Description

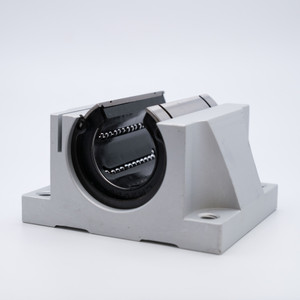

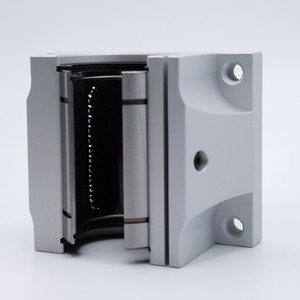

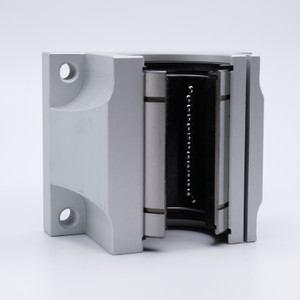

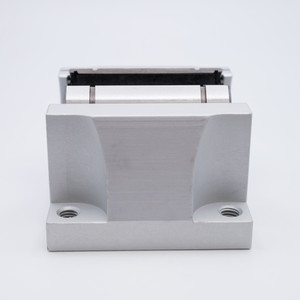

SDM20UU Open Pillow Case Linear Bearing
Key Features
SDM20UU Bearing is a Precision Open Case Pillow Block Ball Bushing Unit with Rubber Seals on both sides and a Polyamide Retainer. This SDM20UU is used for high accuracy systems and any application where smooth linear motion is needed. The housing is made from aluminum alloy and uses the SDM20UU Linear Ball Bushing as an insert. Our Linear Bearings are pre-lubricated with Light Oil allowing them to be ready to use upon arrival.
Applications / Industries
This SDM20UU Linear Bearing is widely applied to Electronic Equipment, Food Processing Industry, Packaging, Medical Machinery, Printing Industry, Textile Industry, Robotics, Automotives, 3D Printing, among other applications requiring smooth linear motion.
Product Videos
Custom Field
Inner Diameter 20mm
Overall Width 68mm
Overall Length 51mm
Height 31.4mm
Bolt Hole to Bolt Hole (Width) 54mm
Bolt Hole to Bolt Hole (Length) 37mm
Thread M6
Insert Bearing LM20UUOP
Housing Material Aluminum Alloy
Static Load 264 lbf
Dynamic Load 176 lbf
Country of Origin China
Interchange Numbers TBR20UU
