Product Description

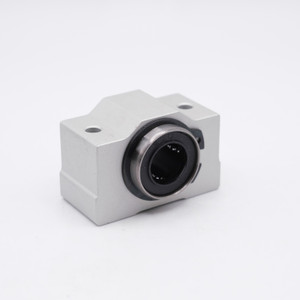

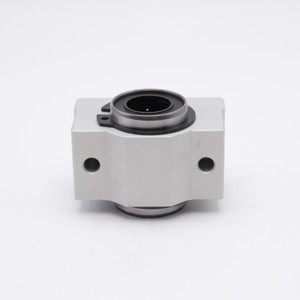

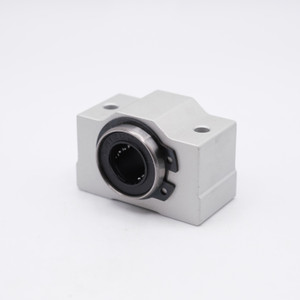

SMA25VUU Short Pillow Block Cased Linear Bearing
Key Features
SMA25VUU is a Short Pillow Block Case Ball Bushing Unit with Rubber Seals on both sides and a Resin Retainer. This SMA25VUU is used for high accuracy systems and any application where smooth linear motion is needed. This unit features a short housing made from aluminum alloy and uses the LM25UU Linear Ball Bushing as an insert. Our Linear Bearings are pre-lubricated with Light Oil allowing them to be ready to use upon arrival.
Applications / Industries
This SMA25VUU Linear Bearings are used in a variety of applications such as Milling Machines, Food Processing Equipment, Packaging Equipment, Medical Machinery, Printing Industry, Textile Industry, Robotics, Automotive Industry, 3D Printing, among other applications requiring smooth linear motion.
Product Videos
Custom Field
Inner Diameter 25mm
Overall Width 76mm
Overall Length 37.4mm
Overall Height 51.5mm
Bolt Hole to Bolt Hole 54mm
Thread Size M8x18
Insert Bearing Material Chrome Steel SAE-52100
Housing Material Aluminum Alloy
Static Load 351 lbf
Dynamic Load 220 lbf
Country of Origin China
Interchange Numbers SMA25VUU, SC25VUUN, SCS25VUU, SMA25-VUU
