Product Description

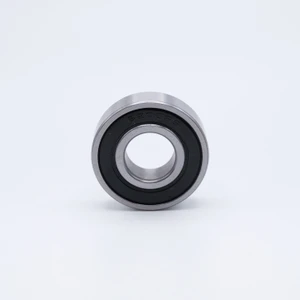

SS688-2RS Stainless Steel Miniature Ball Bearing
Key Features
S688-2RS is a Stainless-Steel Miniature Ball Bearing manufactured to have both sides rubber sealed and is pre-lubricated with grease, allowing it to be ready for use upon delivery. Stainless-Steel Ball Bearings are highly resistant to corrosion from moisture and can run efficiently at much higher temperatures. Our S600 Series Bearings have Larger OD which assists in high speed & larger load application.
Applications / Industries
S688-2RS Stainless-Steel Miniature Ball Bearings are used in a range of applications and are ideal for limited space applications including Remote Controlled Cars/Trucks, Sewing Machines, Lab Equipment, Medical Equipment, Power Tools, Electric Motors, and Kitchen Drawers, among others.
Product Videos
Custom Field
Inner Diameter 8mm
Outer Diameter 16mm
Width 5mm
Closure Type Rubber Sealed
Material Stainless Steel AISI-440C
Lubrication Chevron SRI-2 Grease
Static Load 132 lbf
Dynamic Load 282 lbf
Speed Limit 36,000 RPM
Country of Origin China
Interchange Numbers SMR688-2RS, SS688RS, DDL-1680DD, DDL1680SS, SSL1680-2RS, SS688DDU, SS688VV, SS688LLU, S688LLB, S688.2RSJ1
