Product Description

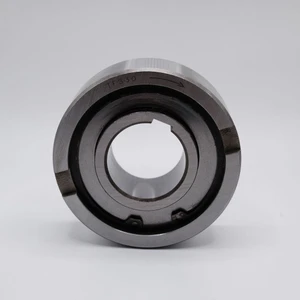

TFS25 Cam Clutch Ball Bearing
Key Features
TFS25 is a Cam Clutch Ball Bearing with two vertical keyways, an internal keyway and has been pre-lubricated with grease to allow it to be ready to use upon delivery. The vertical keyways on the outer ring allow for easier locating in an applications while the internal keyway transmitts torque to a shaft. This bearing is designed to turn in only one direction and transmit torque while reducing backlash.
Applications / Industries
TFS25 One Way Clutch Bearings are used in a variety of overrunning applications, ranging from Agricultural Machinery to Industrial Washing Machines, Clay Pigeon (Trap) Throwers, Conveying Equipment, Electric Motors, CNC Machinery, Mining Equipment, Robotics, Textile Machinery, Rolling Mills, HVAC Systems, among others.
Product Videos
Custom Field
Inner Diameter 25mm
Outer Diameter 62mm
Width 24mm
Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Country of Origin China
Interchange Numbers TFS25
