Product Description

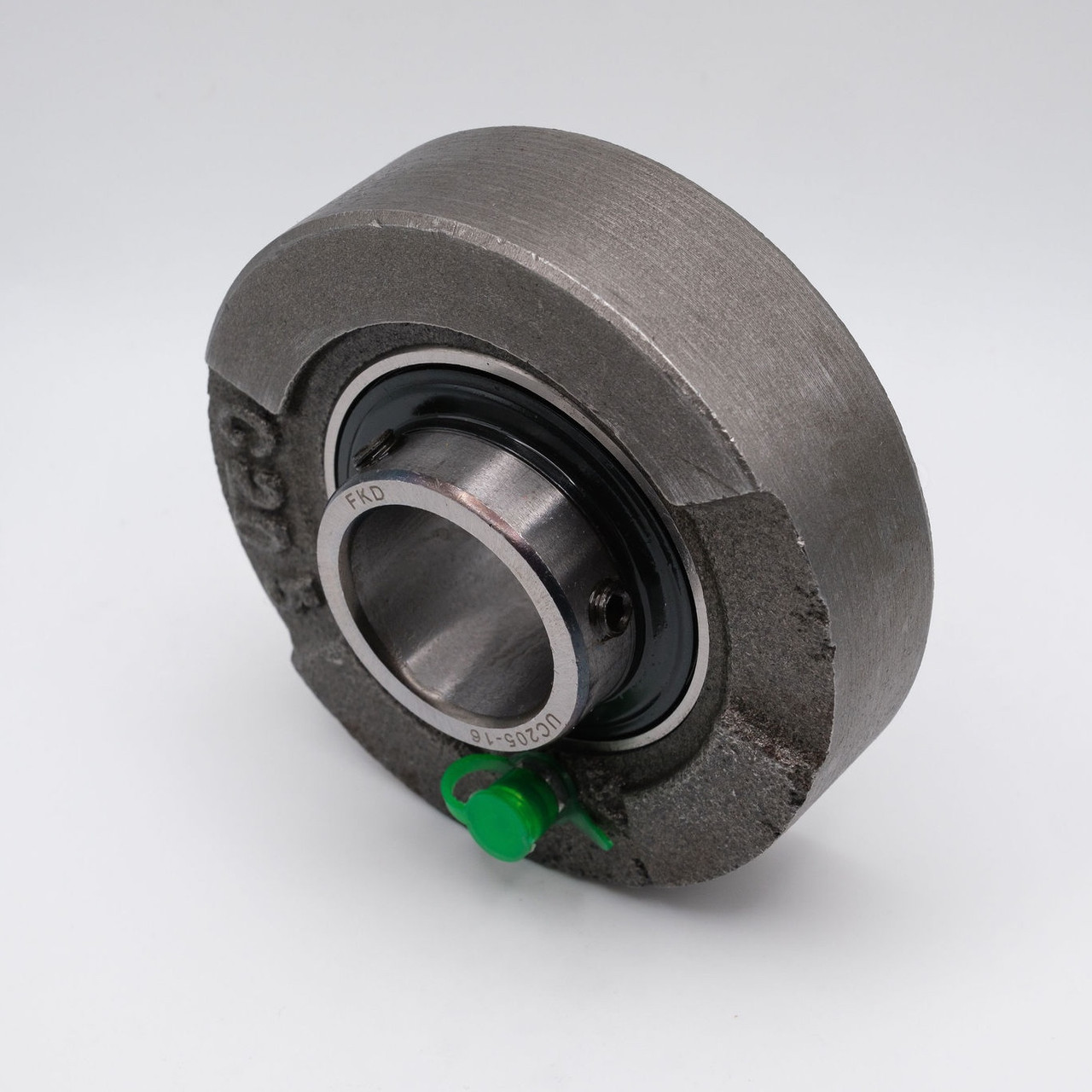

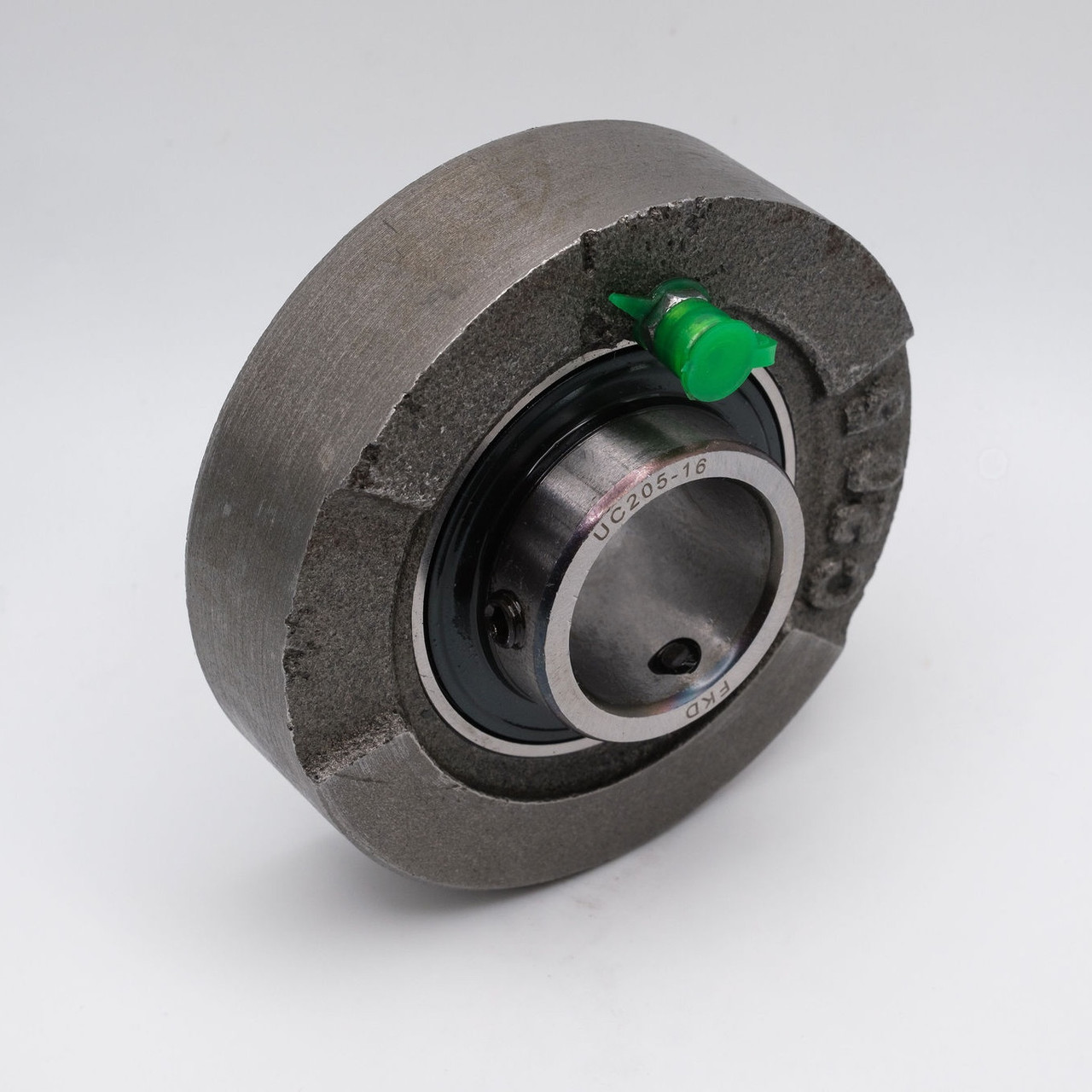

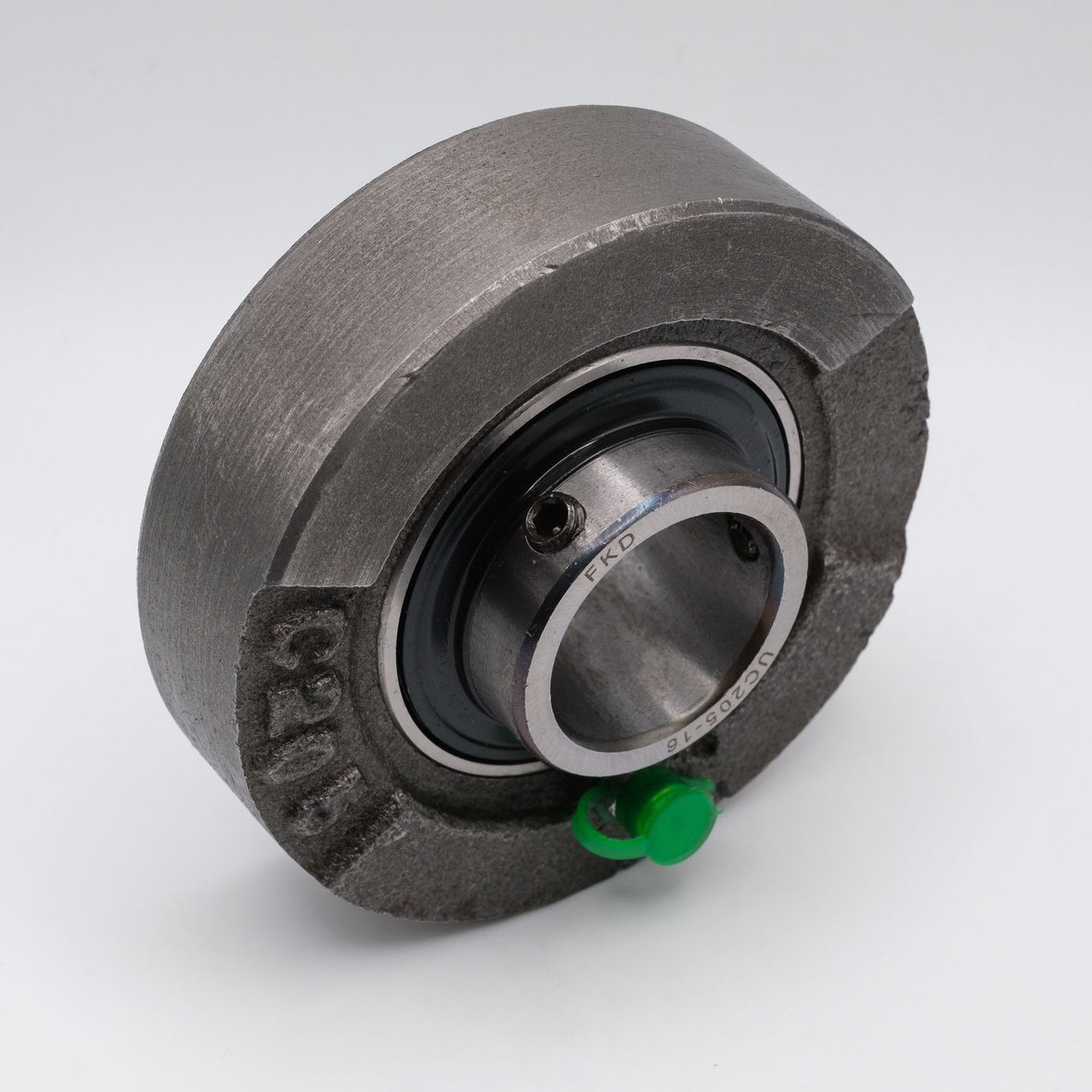

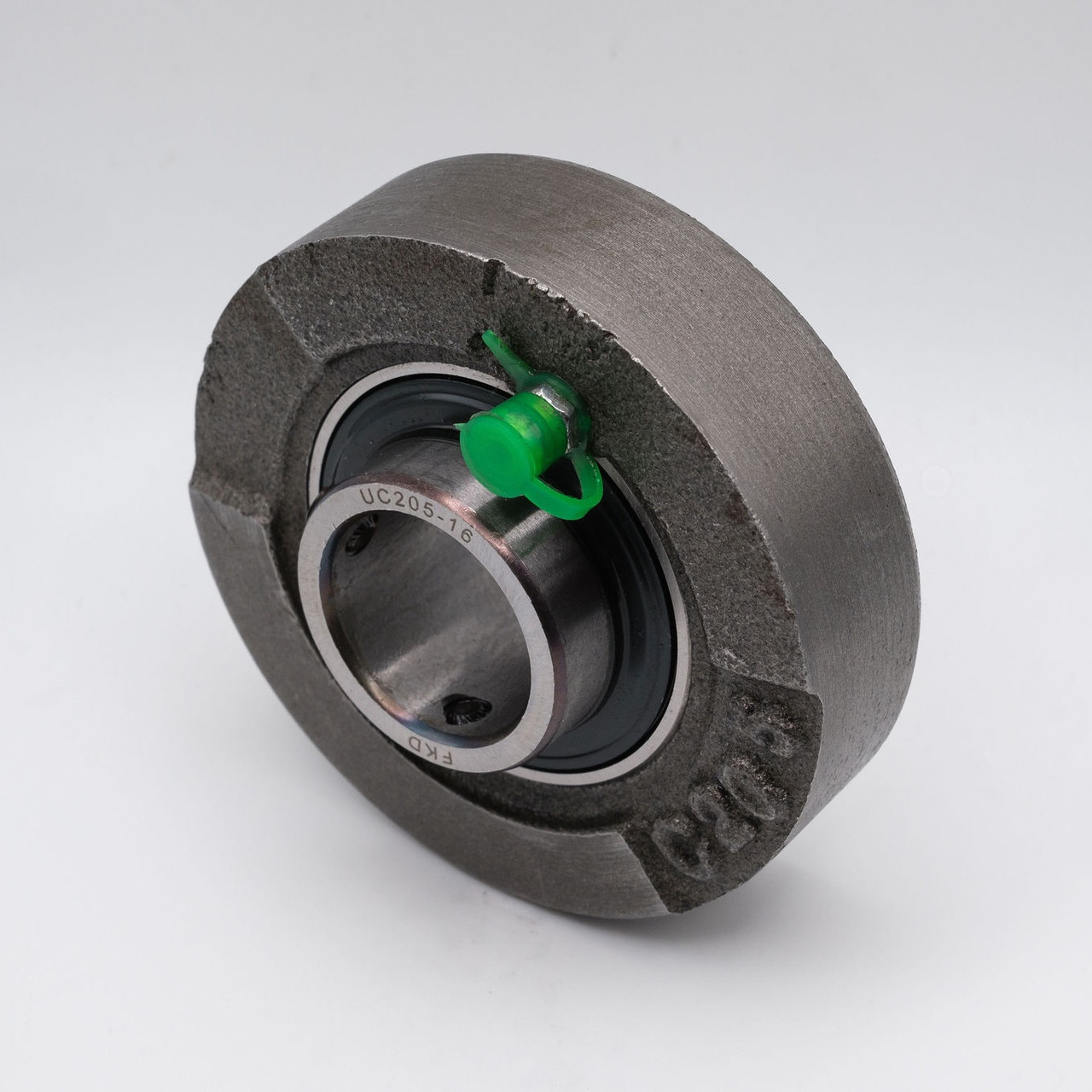

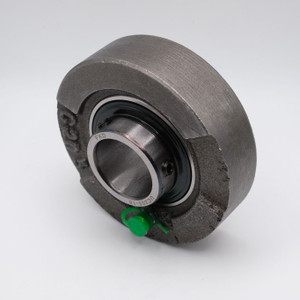

UCC205 Cylindrical Cartridge Bearing Unit
Key Features
UCC205 is a Cylindrical Cartridge Bearing Unit manufactured with Grease Feed Access. UCC205 has been outfitted with a chrome steel insert ball bearing with two set screws, located on the ended inner ring, which can be tightened onto a shaft. This unit also features a cast iron cylindrical housing with a grease feed, allowing for re-lubrication of the bearing if necessary. Our Cylindrical Cartridge Bearing Units are pre-lubricated with grease, ensuring they are ready for immediate use upon delivery.
Applications / Industries
UCC205 Cylindrical Cartridge Bearing Units are used in a variety of applications such as Heating and Air-Conditioning Systems, Ventilating Equipment, Conveyor Systems, Industrial Manufacturing, and General Industrial Equipment, among others.
Product Videos
Custom Field
Inner Diameter 25mm
Outer Diameter 80mm
Overall Width 34.1mm
Housing Material Cast Iron
Insert Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 1,810 lbf
Dynamic Load 3,154 lbf
Speed Limit 6,250 RPM
Country of Origin China
Interchange Numbers UCC205
