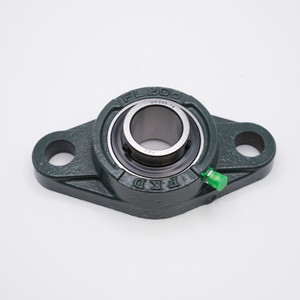

UCFL201 2 Bolt Flange Cast Iron Unit
Key Features
UCFL201 is a UCFL200 Series Cast Iron Pillow Block Flange Unit featuring a wide inner ring and two set screws. The Housing for UCFL201 is made from cast iron and has a grease fitting to allow for re-lubrication of the insert bearing. This UCFL200 Series Unit features a Chrome Steel Set Screw Insert Ball Bearing with two set screws allowing it to be tightened onto a shaft.
Applications/Industries
UCFL201 2-Bolt Flange Cast Iron Bearings are widely used in various Consumer Goods, HVAC Systems, Manufacturing Equipment, Agriculture, Automotive, Conveyor Systems, Film Processing Machinery, Fitness Equipment, Fan Assemblies, Pump, Sporting, Farm Machinery, Conveyor, Feed Mill, and many other Industrial Equipment.
Product Videos
Custom Field
Inner Diameter 12mm
Overall Length 113mm
Overall Width 60mm
Bolt Hole to Bolt Hole 90mm
Housing Material Cast Iron
Insert Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 1,495 lbf
Dynamic Load 2,882 lbf
Speed Limit 8,800 RPM
Country of Origin China
Interchange Numbers KFC2-25-12,KFC2-45-12,UCFL201E,SFT-12EC,SFT-12A,VFTE,UCFT201,VF2S-201,124171-F2B-SC-12,YCJT-12,FX3-U201N,FHSFT201G,SFT-12,SFT,FYT-12
