Product Description

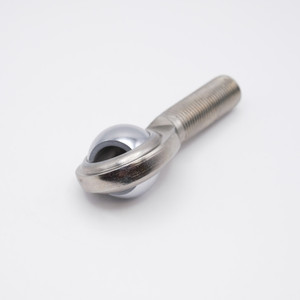

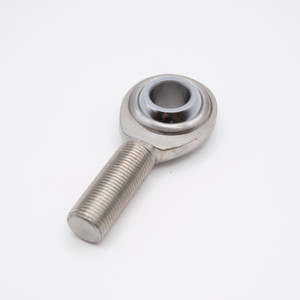

VCB-10 Rod-End Bearing
Key Features
VCB-10 Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. VCB-10 bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank.
Applications / Industries
VCB-10 Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, Textile Manufacturing Equipment, Cars, Trucks, Race Cars, Motorcycles, Lawn Tractors, Boats, Industrial Machines, Go-Karts, Radio Control Helicopters, and Formula Cars, among others.
Product Videos
Custom Field
Inner Diameter 5/8"
Outer Diameter 1-1/2"
Overall Height 3-3/8"
Base to Center 2-5/8"
Thread Size 5/8-18
Thread Direction Left Hand
Ball Material Chrome Steel SAE-52100
Housing Material Nickel Plated
Lubrication Light Oil
Static Load 8,204 lbf
Country of Origin China
Interchange Numbers HML10, HML10G, TREL-10, TREL10N, TREL-10N, MB-10, MB-10Z, POSB10LZ, VCB-10
