Product Description

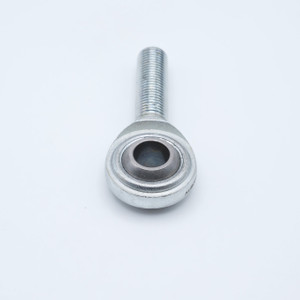

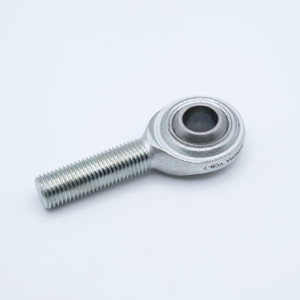

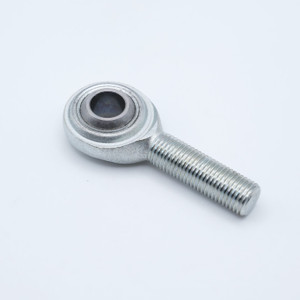

VCB-8 Rod-End Bearing
Key Features
VCB-8 Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. VCB-8 bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank.
Applications / Industries
VCB-8 Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, Textile Manufacturing Equipment, Automotive Components, Industrial Machines, Printing Equipment, Conveyor Systems, Automation Control Components, among others.
Product Videos
Custom Field
Inner Diameter 1/2"
Outer Diameter 1-5/16"
Overall Height 3-3/32"
Base to Center 2-7/8"
Thread Size 1/2-20
Thread Direction Left Hand
Ball Material Chrome Steel SAE-52100
Housing Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 7,229 lbs
Country of Origin USA
Interchange Numbers HML8, HML8G, TREL-8, TREL8N, TREL-8N, MB-8, MB-8Z, POSB8LZ, VCB-8
