Product Description

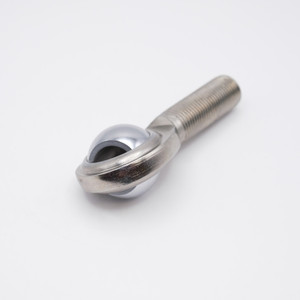

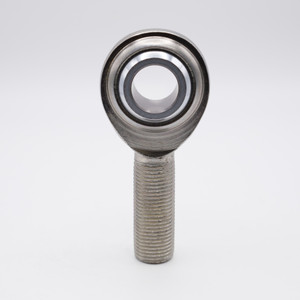

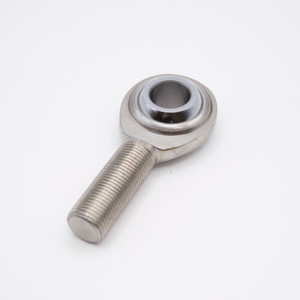

VCM-6 Rod-End Bearing
Key Features
VCM-6 Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. VCM-6 bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank. This VCM-6 Rod-End Bearing features a PTFE Liner which reduces friction and overall wear of the bearing overtime.
Applications / Industries
VCM-6 Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, Textile Manufacturing Equipment, Transmission Linkages, Conveyor System Components, Industrial Machines, among others.
Product Videos
Custom Field
Inner Diameter 3/8"
Outer Diameter 1"
Overall Height 2-7/16"
Base to Center 1-15/16"
Thread Size 3/8-24
Thread Direction Right Hand
Ball Material Chrome Steel SAE-52100
Housing Material Carbon Steel
Lubrication Light Oil
Static Load 3,643 lbf
Country of Origin USA
Interchange Numbers HM6, HM6G, TRE6, TRE6N, TRE-6N, MM-6, MM6Z, POSB6Z, VCM-6
