  • W209PPB2 Round Bore Disc Harrow Ball Bearing 45mm Bore Right Angled View
  • W209PPB2 Round Bore Disc Harrow Ball Bearing 45mm Bore Left Angled View
  • W209PPB2 Round Bore Disc Harrow Ball Bearing 45mm Bore Front View

    • W209PPB2 Round Bore Disc Harrow Ball Bearing 45mm Bore

    AMPEC

    $40.56
    (No reviews yet) Write a Review
    SKU:
    W209PPB2
    Availability:
    Usually ships in 24 hours.
    Bulk Pricing:
    Buy in bulk and save

    Bulk discount rates

    Below are the available bulk discount rates for each individual item when you purchase a certain amount

    • Buy 10 - 24 and get 5% off
    • Buy 25 - 49 and get 10% off
    • Buy 50 or above and get 15% off
    Inner Diameter:
    45mm
    Outer Diameter:
    85mm
    Width:
    30.2mm
    Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    4,460 lbf
    Dynamic Load:
    8,130 lbf
    Speed Limit:
    500 RPM
    Country of Origin:
    China
    Interchange Number:
    W209PPB2, DS209TT2, W209PPB2, R3-209E3, 7200460, B7778, 276882, 208-12
    Adding to cart… category.add_cart_announcement

    Product Description

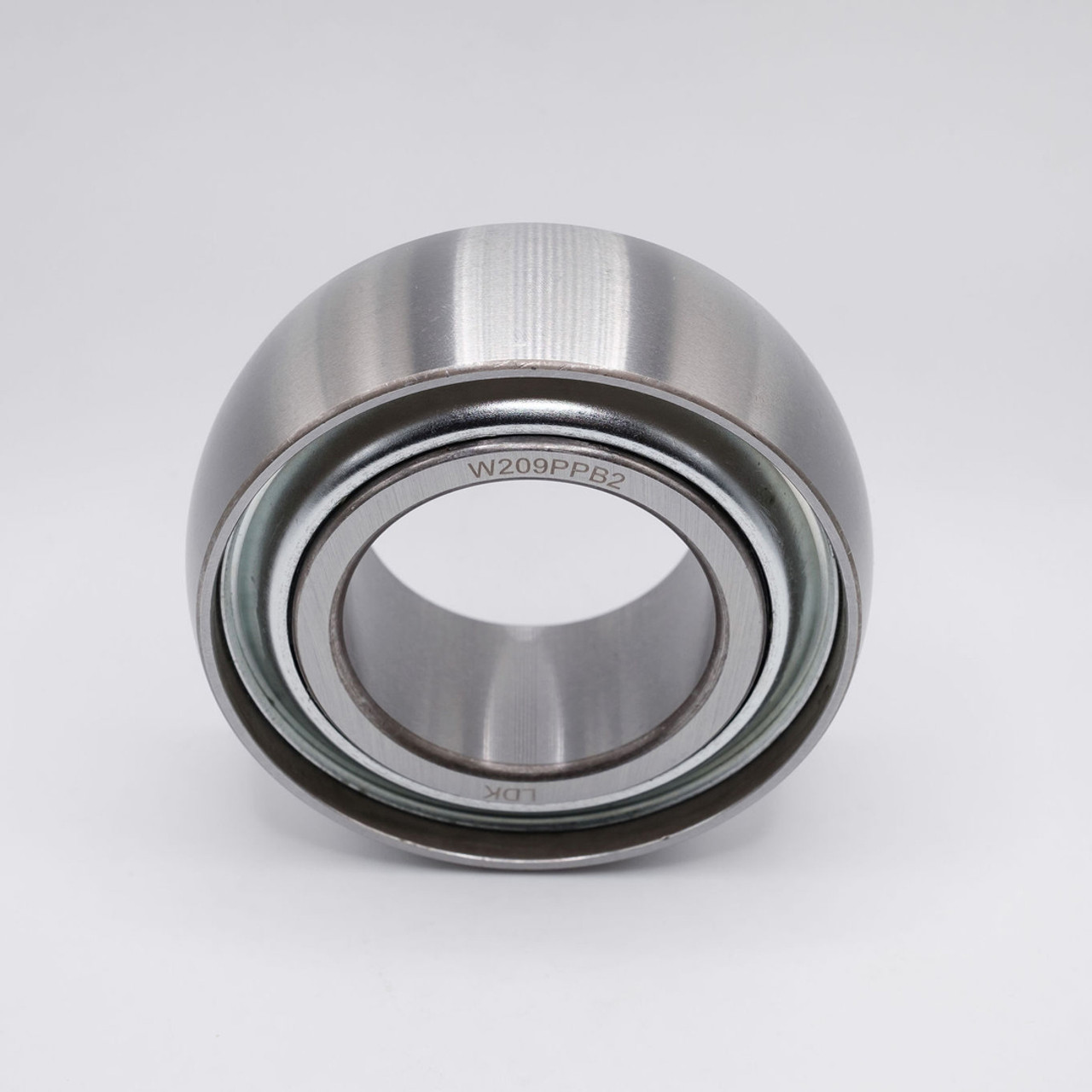

    W209PPB2 Disc Harrow Ball Bearing

    Key Features

    W209PPB2 is a Round Bore Disc Harrow Bearings with a spherical outer diameter and are made with triple lip seals to protect from corrosive environments. This seal is a one piece shroud cover with three molded contact seals. This bearing is a non-relubricable type bearing and is pre-lubricated with grease, allowing for immediate use upon delivery.

    Applications / Industries

    W209PPB2 Disc Harrow Bearings are used in a range of equipment, primarily in Agricultural Applications such as Planters, Gauge Wheels, Rotary Hoe, Cultivators, Kewanee Model 209 & 218, Tillers, Combines, Balers, Conveyor Systems, Grain Augers, Garden Tractors, Industrial Fans, Pumps, Power Transmission Equipment, among others.

    Product Videos

    Custom Field

    Inner Diameter 45mm
    Outer Diameter 85mm
    Width 30.2mm
    Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 4,460 lbf
    Dynamic Load 8,130 lbf
    Speed Limit 500 RPM
    Country of Origin China
    Interchange Number W209PPB2, DS209TT2, W209PPB2, R3-209E3, 7200460, B7778, 276882, 208-12
