Product Description

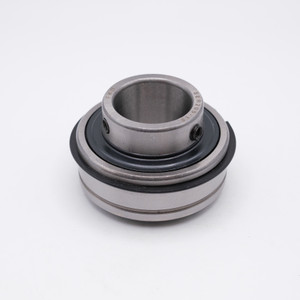

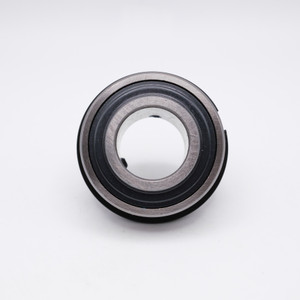

SER206-20 Insert Ball Bearing
Key Features
SER206-20 is a SER200 Series Set Screw Locking Bearing Insert Ball Bearing with a Snap Ring and Grease Feeding Access. This SER206-20 Insert Bearing has two set screws which allows it to tighten against a shaft once it is fitted properly and a grease feeding groove for re-lubrication of the bearing. Our SER200 Series Insert Bearing features a snap ring which facilitates the axial location of the bearing in its housing and each of our inserts have been pre-lubricated with grease, allowing them to be ready for use upon arrival.
Applications / Industries
SER206-20 Insert Ball Bearings are used in a range of applications from Agricultural Machinery, Construction Machinery, Machine Tools, Automobiles, Metallurgy, Railways, Conveying Equipment, Drilling Rigs, Packaging, Shaft Supports, Baking Machinery, Printing Industry, among others.
Product Videos
Custom Field
Inner Diameter 1-1/4"
Outer Diameter 62mm
Width 22.2mm
Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 2,500 lbf
Dynamic Load 4,300 lbf
Speed Limit 5,300 RPM
Country of Origin China
Interchange Numbers ER106-20, ER206-20, SER-20, 1130-1-1/4CG, UCS206-104LD1NR, VER-20, VCS206-103DINR, 8090T15
Request for Quote Click Here
