Product Description

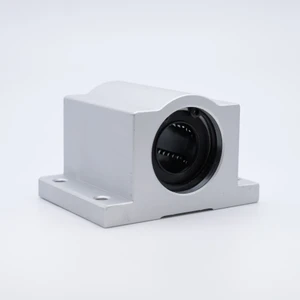

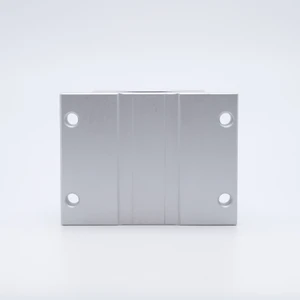

SWA20-UU Pillow Block Linear Bearing
Key Features
SWA20UU Bearing is a Precision Slide Pillow Block Linear Ball Bushing Unit with Rubber Seals on both sides and a Polyamide Retainer. This SWA20UU is used for high accuracy systems and any application where smooth linear motion is needed. The housing is made from aluminum alloy and uses the SW20UU Linear Ball Bushing as an insert. Our Linear Bearings are pre-lubricated with Light Oil allowing them to be ready to use upon arrival.
Applications / Industries
This SWA20UU Linear Bearing is widely applied to Electronic Equipment, Food Processing Industry, Packaging, Medical Machinery, Printing Industry, Textile Industry, Robotics, Automotives, 3D Printing, among other applications requiring smooth linear motion.
Product Videos
Custom Field
Inner Diameter 1-1/4"
Overall Length 3-5/8"
Overall Width 4"
Overall Height 2-1/2"
Base to Center 1-1/2"
Block Width 3"
Bolt Hole to Bolt Hole (Width) 3-1/2"
Bolt Hole to Bolt Hole (Length) 2"
Bolt Hole Size 7/32"
Insert Bearing Material Chrome Steel SAE-52100
Housing Material Aluminum Alloy
Lubrication Light Oil
Static Load 617 lbf
Dynamic Load 353 lbf
Country of Origin China
Interchange Numbers TWA20UU, SPB-20, KGNZ20PP, XEP-20, SWA20-UU, TWA20U
