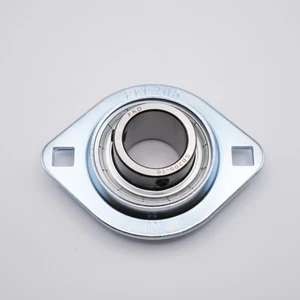

  • SBPFL205-16 Pressed Steel 2 Bolt Flange Ball Bearing 1" bore Top View
  • SBPFL205-16 Pressed Steel 2 Bolt Flange Ball Bearing 1" bore Side View

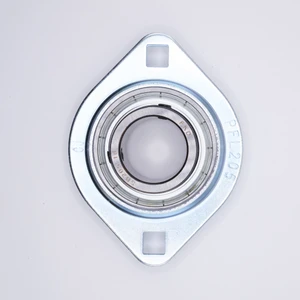

  • SBPFL205-16 Pressed Steel 2 Bolt Flange Ball Bearing 1" bore Bottom View

    • 1" bore SBPFL205-16 Pressed Steel 2 Bolt Flange Ball Bearing AELPFL205-100

    AMPEC

    $12.60
    (1 review) Write a Review
    SKU:
    SBPFL205-16
    Availability:
    Usually ships in 24 hours.
    Bulk Pricing:
    Buy in bulk and save

    Bulk discount rates

    Below are the available bulk discount rates for each individual item when you purchase a certain amount

    • Buy 10 - 24 and get 5% off
    • Buy 25 - 49 and get 10% off
    • Buy 50 or above and get 15% off
    Adding to cart… category.add_cart_announcement
    Inner Diameter:
    1"
    Overall Length:
    3-3/4"
    Overall Height:
    2-25/32"
    Bolt Hole to Bolt Hole:
    2-63/64"
    Housing Material:
    Press Steel
    Insert Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    1,810 lbf
    Dynamic Load:
    3,154 lbf
    Speed Limit:
    6,250 RPM
    Country of Origin:
    China
    Interchange Numbers:
    ENPFL-205-16S, UBPFL-205-16S, JEPFL205-016, FT1FM, AELPFL205-100, SSFT-16E, RAT-1, F2BSLX-1, FHPFL205-16, FXR-U216N, BPFL5-16, RA100NPPB+52MST, PTF-16
    Request for Quote:
    Click Here

    Product Description

    SBPFL205-16 Pressed Steel 2 bolt Flange Unit

    Key Features

    SBPFL205-16 is a Pressed Steel 2-Bolt Flange Housing in combination with a Chrome Steel Set Screw Insert Ball Bearing. This Unit features two set screws, located on the extended inner ring of the insert, which can be tightened onto a shaft. Our SBPFL206 Pressed Steel Units are pre-Lubricated with Grease, ensuring they are ready for use upon delivery.

    Applications/Industries

    SBPFL205-16 Pressed Steel 2 bolt Flange units are widely used in various Consumer Goods, HVAC Systems, Manufacturing Equipment, Agriculture, Automotives, Conveyor Systems, Film Processing Machinery, Fitness Equipment, Fan Assemblies, Pumps, among others.

    Product Videos

    Custom Field

    Inner Diameter 1"
    Overall Length 3-3/4"
    Overall Height 2-25/32"
    Bolt Hole to Bolt Hole 2-63/64"
    Housing Material Press Steel
    Insert Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 1,810 lbf
    Dynamic Load 3,154 lbf
    Speed Limit 6,250 RPM
    Country of Origin China
    Interchange Numbers ENPFL-205-16S, UBPFL-205-16S, JEPFL205-016, FT1FM, AELPFL205-100, SSFT-16E, RAT-1, F2BSLX-1, FHPFL205-16, FXR-U216N, BPFL5-16, RA100NPPB+52MST, PTF-16
    Request for Quote Click Here

    Product Reviews

    Write a Review

    1 Review Hide Reviews Show Reviews

    • 5
      Title of review 474

      Posted by Hank B. on 26th Sep 2022

      Exactly what I needed thank you Bearings Direct!

    Recommended
