Product Description

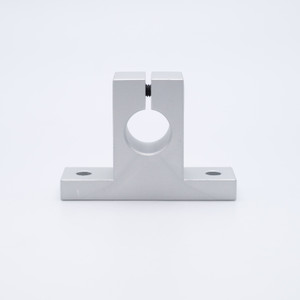

SKW16 Linear Shaft Supports
Key Features
SKW16 Linear Shaft Support is a support for a Linear Rod that needs additional space on both ends to accommodate the installation of shafts. Used in combination with Precision Linear Bearings and other applications requiring a precise round hardened shaft or guide rod. Our SKW16 Linear Shaft Supports have overhead clearance by support shaft and end mounting for support.
Applications / Industries
SKW16 Linear Shaft Support can be used in a variety of different industries from Medical Equipment to Packaging, Mechanical Application, CNC Machinery, Robotic Equipment, Appliances, Exercise Machines, Transportation, 3D Printers, Sliding Doors, Automation Machinery, among others.
Product Videos
Custom Field
Inner Diameter 1"
Base to Center 1-1/2"
Overall Length 3-1/16"
Overall Height 2-9/16"
Block Length 1-1/2"
Bolt Hole to Bolt Hole 2-1/2"
Material Aluminum Alloy
Country of Origin China
Interchange Numbers WH16A, WH16, SWK16
