Product Description

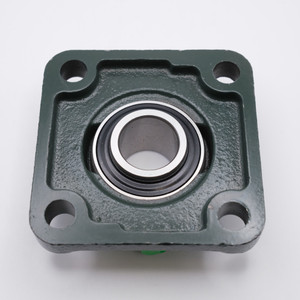

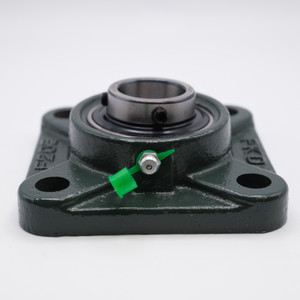

UCF201 4-bolt Flanged Mounted Block Unit
Key Features
UCF201 bearing is 4-Bolt Flange Bearing containing a wide inner ring with two set screws for the attachment of the shaft. This 4-Bolt Flange Bearing has a combination of set screw chrome steel inserts with a slinger seal design and a unique cast iron 4-Bolt Flange housing with an anti-rotation device. The UCF200 Series 4-Bolt Flange Bearing has an Eccentric Insert Set Screw Collar Ball Bearing, Standard Duty Self Aligning and Grease Feeding Access. Our UCF201 Mounted Block Bearings are pre-lubricated with grease to allow them to be ready to use upon arrival.
Applications / Industries
UCF201 this flange bearing is commonly used for HVAC, Conveying, Processing, Feed Mill, Agricultural and many other Industrial Applications.
Product Videos
Custom Field
Inner Diameter 12mm
Overall Length 86mm
Overall Height 33.3mm
Bolt Hole to Bolt Hole 64mm
Housing Material Cast Iron
Insert Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 1,495 lbf
Dynamic Load 2,882 lbf
Speed Limit 8,800 RPM
Country of Origin China
Interchange Numbers SF-12, VF4S-108MF4S-208, SCJ-12, RCJC-12, FHSF201G, UCF201-12FB250, RCJY 12MM, F3-U2B12N, KFC4-45-12M, UCF201-08, UCF201, UCF201-12MM, UCF201-012T, UCF201-12D1, SF-12, FY-12TM, YAR201-012, UCF201 12mm
