Product Description

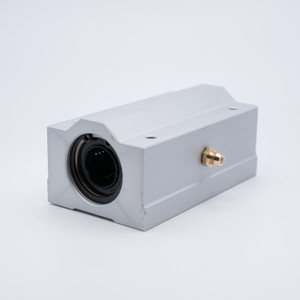

SMA20WUU Double Pillow Cased Linear Bearing
Key Features
SMA20WUU Bearing is a Precision Double Pillow Block Case Ball Bushing Unit with Rubber Seals on both sides and a Resin Retainer. This SMA20WUU is used for high accuracy systems and any application where smooth linear motion is needed. The housing is made from aluminum alloy and uses the LM20UU Linear Ball Bushing as an insert. Our Linear Bearings are pre-lubricated with Light Oil allowing them to be ready to use upon arrival.
Applications / Industries
This SMA20WUU Linear Bearing is widely applied to Electronic Equipment, Food Processing Industry, Packaging, Medical Machinery, Printing Industry, Textile Industry, Robotics, Automotives, 3D Printing, among other applications requiring smooth linear motion.
Product Videos
Custom Field
Inner Diameter 20mm
Overall Width 54mm
Overall Length 96mm
Height 41mm
Bolt Hole to Bolt Hole (Width) 40mm
Bolt Hole to Bolt Hole (Length) 70mm
Thread M6x12
Insert Bearing Material Chrome Steel SAE-52100
Housing Material Aluminum Alloy
Static Load 616 lbf
Dynamic Load 308 lbf
Country of Origin China
Interchange Numbers SMA20WUU, SC20WUUN, SCS20WUU, SMA20-WUU
