Product Description

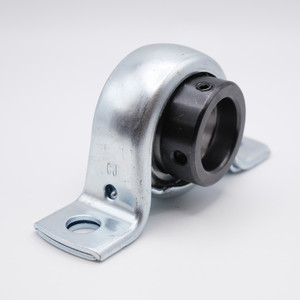

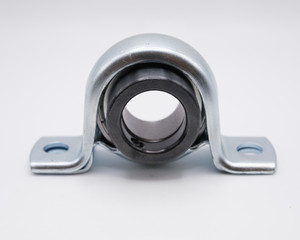

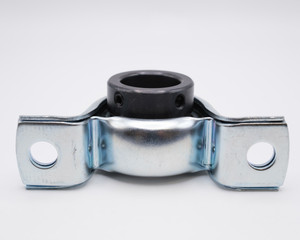

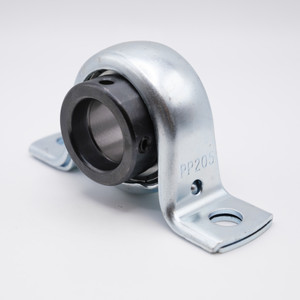

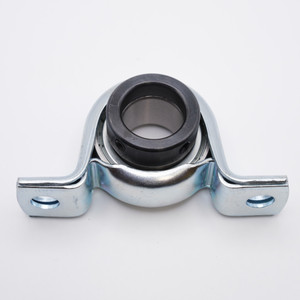

SAPP204-12 Pressed Steel Pillow Block Unit
Key Features
SAPP204-12 is a Mounted Block Bearing Unit that is a combination of a pressed steel pillow block bearing and a light duty eccentric locking collar insert bearing. This unit features an eccentric locking collar that has been equipped with two Set Screws to tighten onto a shaft. Our SAPP200 Series come pre-lubricated with grease to allow it to be ready to use upon arrival.
Applications / Industries
SAPP204-12 Pressed Steel Mounted Blocks are used in a variety of applications such as Agricultural Equipment, Printing Industry, Pumps, Sporting and Consumer Goods, Construction Equipment, Manufacturing Equipment, Conveyor Systems, Fan Assemblies, Light-duty Industrial applications, among others.
Product Videos
Custom Field
Inner Diameter 3/4"
Overall Length 4-1/4"
Overall Height 1-63/34"
Bolt Hole to Bolt Hole 2-63/64"
Base to Center 1"
Housing Material Pressed Steel
Insert Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 2,500 lbf
Dynamic Load 2,900 lbf
Speed Limit 7,450 RPM
Country of Origin China
Interchange Numbers KHPP204-12, SSPE-112, P3B-SLX-012, PB-3/4, AELPP204-12, FHPPZ204-12, SSP-12E, S-3/4FM, PBY-12, SAPP204-12F, SAPP204 3/4
