Product Description

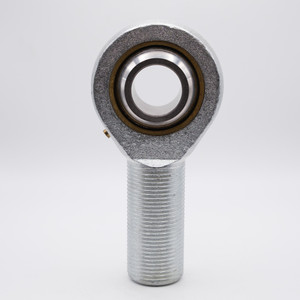

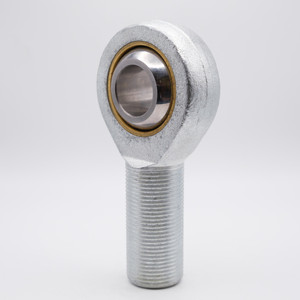

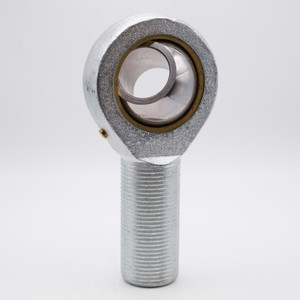

POS30 bearing is Male Rod End PilloBall Insert Type with Right Handed Thread Ball joint Bearing Self Lubricating Carbon Steel, Protective coated for corrosion resistance
Sizes: ID 30mm x OD 70mm x W 37mm - Rod 66mm
Match#: GAKFR30PB, SAKAC30M, SM30, SABP30S, SA30TK, GAKR30PB, SM-30, CM-M30, CM-M30Z, DWTM30, MM-M30, AM-M30, POS-30NP, GAKR30-PB, EM-M30, MCMR30, GAKFR30-PB4
POS30 rod-end bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. MM-M30 bearing consist of a spherical swivel with a cylindrical bore through which a bolt may pass pressed into a housing that has a threaded shank. SM30 Rod end bearings are used in applications such as steering linkages, agricultural machinery, and textile manufacturing equipment, among others.
| Ball: Gcr15 Steel, heat treated, HRC58~64; Precision ground, polished Body: Carbon steel, Zinc plated.chromate treated Race: Brass Sliding contact surfaces: Steel/Brass |
 |
| Bearing No. | Dimensions(mm) | Ball | a0 | Load ratings | |||||||||
| dia | mis. angle | (KN) | |||||||||||
| d | B | C1 | d1 | d2 | d3-6g | h | L1 | L2 | Dynamic | Static | |||
| H7 | |||||||||||||
| POS30 | 30 | 37 | 25 | 34.8 | 70 | M30X2 | 110 | 66 | 145 | 50.8 | 17 | 54.3 | 94.0 |
