Product Description

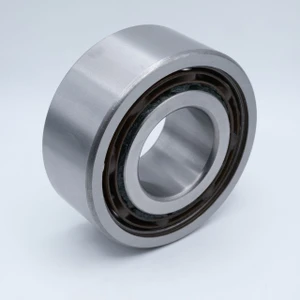

3306 Double Row Ball Bearing
Key Features
3306 is a Double-Row Angular Contact Bearing with both sides Open. This 3306 Medium Duty Double Row Ball Bearing is capable of carrying moderate radial and axial loads. Our 3300 Series Metric Double Row Ball Bearings are available either open, metal shielded, or with rubber sealed closures and come pre-lubricated with either grease or light oil.
Applications / Industries
3306 Double Row Ball Bearings are used in a range of applications from Agricultural Machinery to Conveying Equipment, Electric Motors, CNC Machinery, Trucks, Mining Equipment, Train, Robotics, Elevators, Rolling Mills, Ship Rudder Shafts, and Aggregate Crushers, among others.
Product Videos
Custom Field
Inner Diameter 30mm
Outer Diameter 72mm
Width 30.2mm
Closure Type Open
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 16,300 lbf
Dynamic Load 15,100 lbf
Speed Limit 5,500 RPM
Country of Origin Europe/Japan
Interchange Numbers 5306SS, 3306-2Z, 5306FF, 5306-CFF, 55606, 3306B-2ZR, 5306-2Z
