Product Description

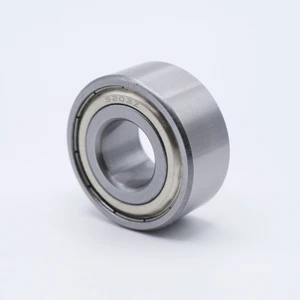

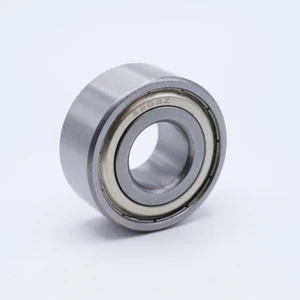

3308-ZZ Double Row Ball Bearing
Key Features
3308-ZZ is a Double Row Angular Contact Bearing with both sides Metal Shielded to protect the bearing from any corrosion or outside debris. This 3308-ZZ Medium Duty Double Row Ball Bearing is designed to accommodate combined loads. Our 3300 Series Metric Double Row Ball Bearings are available either open, metal shielded, or with rubber sealed closures and come pre-lubricated with either grease or light oil.
Applications / Industries
3308-ZZ Double Row Ball bearings are used in a range of applications from Agricultural Machinery to Conveying Equipment, Electric Motors, CNC Machinery, Trucks, Mining Equipment, Train, Robotics, Elevators, Rolling Mills, Ship Rudder Shafts, and Aggregate Crushers, among others.
Product Videos
Custom Field
Inner Diameter 40mm
Outer Diameter 90mm
Width 36.5mm
Closure Type Metal Shielded
Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 12,900 lbf
Dynamic Load 12,200 lbf
Speed Limit 4,600 RPM
Country of Origin China
Interchange Numbers 5308SS, 3308-2Z, 5308FF, 5308-CFF, 55608, 3308B-2ZR, 5308-2Z
