Product Description

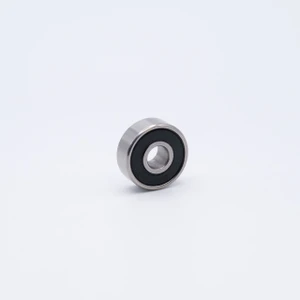

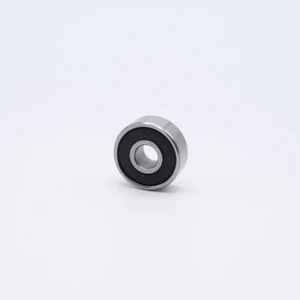

608-2RS-16 Miniature Ball Bearing
Key Features
608-2RS-16 is an ABEC1 Precision Radial Miniature Ball Bearing manufactured with a special 5/16" inch bore, Rubber Seals on both sides and is pre-lubricated with grease allowing it to be ready for use upon delivery. Our 600 Series Bearings have a larger OD which can assist in high speed applications as well as facilitate larger loads.
Applications / Industries
608-2RS-16 Miniature Ball Bearings are used in a range of applications from Electric Motors to Robotic Systems, Power Tools, Wheel Bearing, High Speed Motors, Medical Equipment, Skating, Rollerblades, Skateboards, Fidget Spinner, Jewelry, RC Helicopters, RC Planes, RC Trucks, RC Cars, robotics, Dental equipment, among others.
Product Videos
Custom Field
Inner Diameter 5/16"
Outer Diameter 22mm
Width 7mm
Closure Type Rubber Sealed
Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 311 lbf
Dynamic Load 741 lbf
Speed Limit 34,000 RPM
Country of Origin China
Interchange Numbers 608-2RS-5/16, 608-2RS16, 608-RS-16, MR608-2RS-16
