Product Description

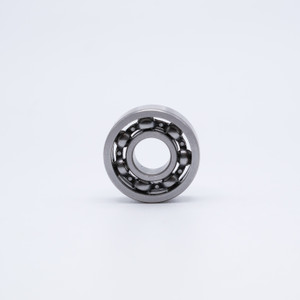

686 Mini Ball Bearing
Key Features
686 is a High Quality Precision Miniature Ball Bearing manufactured with an extended inner ring and has both sides Open. Our 600 Miniature Ball Bearing Series have a Larger OD to be used in High Speed & Larger Load Capacity Applications and come pre-lubricated with Light Oil to allow them to be ready to use upon delivery.
Applications / Industries
686 Miniature Ball Bearings are used in a wide range of applications from Automation Control Components to Robotic Systems, Chemical Lab Equipment, High Speed Applications, Food Processing Equipment, Hand Piece, RC Helicopters, RC Planes, among others.
Product Videos
Custom Field
Inner Diameter 6mm
Outer Diameter 13mm
Width 3.5mm
Closure Type Open
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 99 lbf
Dynamic Load 243 lbf
Speed Limit 50,000 RPM
Country of Origin China
Interchange Numbers L-1360, MR686, R-1360
