Product Description

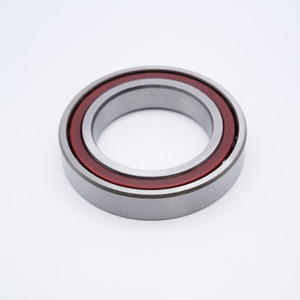

7005CP4 Precision Angular Contact Ball Bearing
Key Features
7005CP4 is an ABEC7 Precision Angular Contact Ball Bearing with a 15 Degree Phenolic Cage. 7005CP4 features an ABEC7 precision rating, making this bearing capable of higher speeds while also maintaining high precision. Phenolic cages are lightweight and strong making them ideal for high speed applications and 15 Degree angular contact bearings deliver more dial capacity and performance. 7005CP4 also has Universal Mounting and comes pre-lubricated with Light Oil.
Applications / Industries
7005CP4 Angular Contact Ball Bearings are used in a range of applications from Materials Handling, Machine Tools, Steel Mills, Wind Energy Industries, Gearboxes, Pumps, Electric Motors, Clutches, Compressors, Industrial Generators, Steel Mills and other High-Speed Applications.
Product Videos
Custom Field
Inner Diameter 25mm
Outer Diameter 47mm
Width 12mm
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 1,660 lbf
Dynamic Load 2,900 lbf
Speed Limit 36,000 RPM
Country of Origin China
Interchange Numbers B7005CP4, 105KR-BKE7, 7005X2, 7005DGLP4, 3MM9105WI-CR, 7005CTLP4, 7005CSTP4, 7005X2TA7, S6005CTA7, EX25CEL, QOl05DTL7, 7005CTSULP4
