Product Description

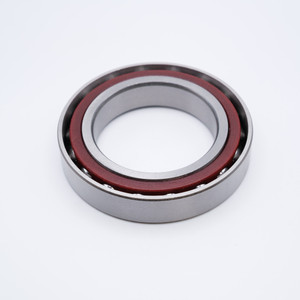

7006C Angular Contact Ball Bearing
Key Features
7006C is a Precision Angular Contact Ball Bearing with an ABEC1 Precision Rating and a 15 Degree Phenolic Cage. Phenolic cages are lightweight and strong making them ideal for high speed applications and 15 Degree angular contact bearings deliver more dial capacity and performance. 7006C also has Universal Mounting and comes pre-lubricated with Light Oil, ensuring that it is ready for immediate use upon arrival.
Applications / Industries
7006C Angular Contact Ball Bearings are used in a range of applications from Materials Handling, Machine Tools, Steel Mills, Wind Energy Industries, Gearboxes, Pumps, Electric Motors, Clutches, Compressors, Industrial Generators, Steel Mills and other High-Speed Applications.
Product Videos
Custom Field
Inner Diameter 30mm
Outer Diameter 55mm
Width 13mm
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 3,530 lbf
Dynamic Load 2,608 lbf
Speed Limit 43,000 RPM
Country of Origin China
Interchange Numbers B7006C, 106KR-BKE, 7006X2, 7006DGL, 9106WI-CR, 7006CTL, 7006C, 7006X2TA, S6006CTA, EX30CEL, QOl06DRL7
