Product Description

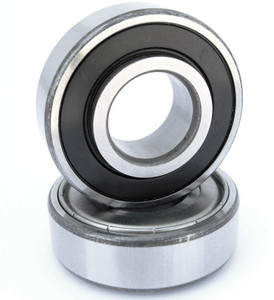

87504 bearing is Felt Seal radial Ball Bearing and pre-lubricated with bearing grease to allow them to be ready to use upon arrival.
Sizes: ID 20mm x OD 47mm x W 15.875mm = ID 0.7874" x OD 1.8504" x W 0.625" Inches
Interchange : 20BCD066JHP, 7B1263, BR87504, 204KLD, 6204FP, 505820, FS87504, 204FSF, C87504, B87504, G87504, 87504, JD7179, 3110-00-145-5013
87504 ball bearings are also commonly known as felt series bearings because manufactures use to use felt seals in this bearing type, however, the new standard is to use rubber for the seal material. 87504 bearings are found in a wide range of industrial, automation, and electric motor applications. They are designed to reduce rotational friction and support loads.
Product Videos
Custom Field
Inner Diameter 20mm
Outer Diameter 47mm
Width 5/8"
Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 1,494 lbf
Dynamic Load 2,885 lbf
Speed Limit 10,000 RPM
Country of Origin China
Interchange Numbers G87504, 87504, JD7179, 3110-00-145-5013
