Product Description

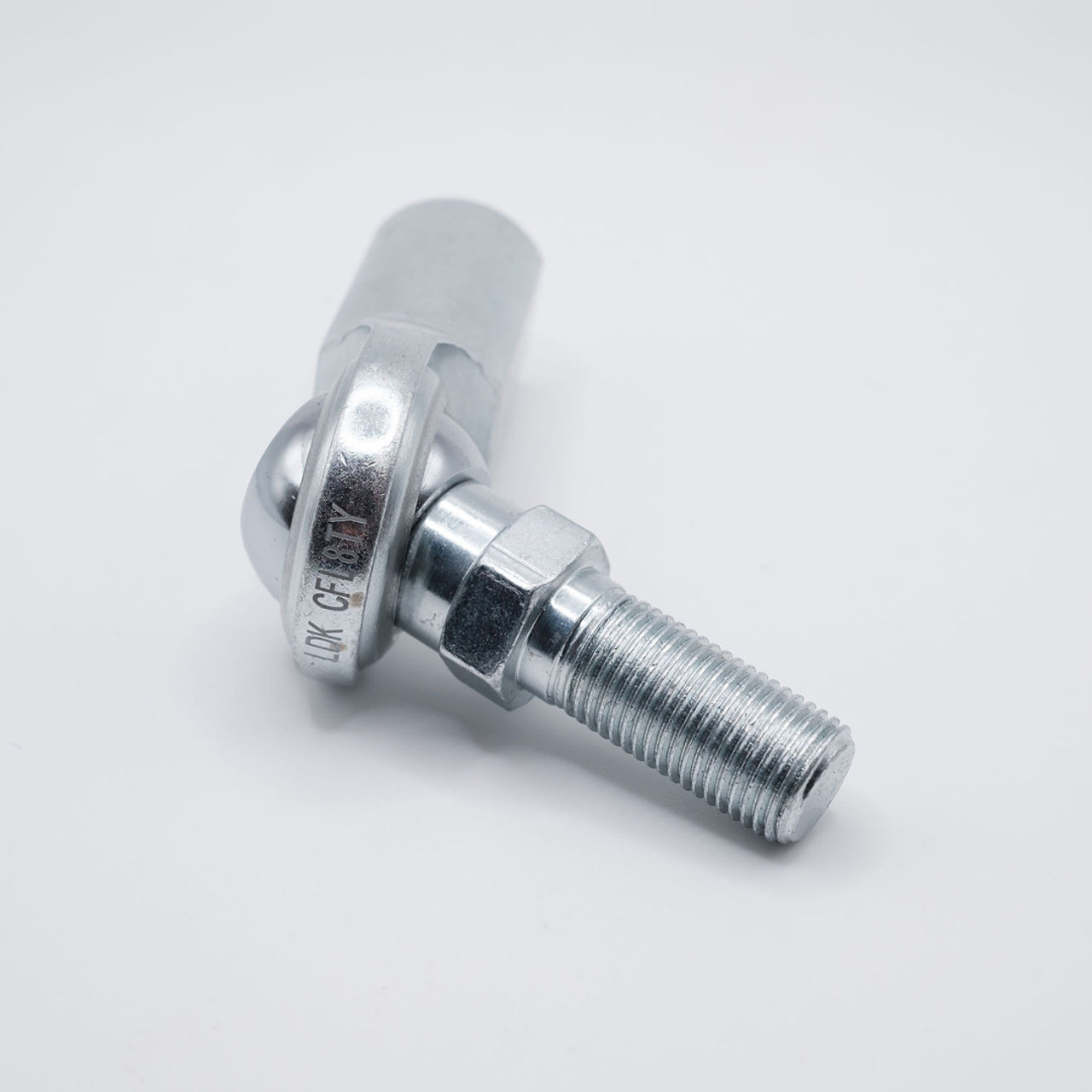

CF4TY is an Inch Sized Female Rod End Bearing manufactured with a Stud, a Right Hand Thread and a PTFE Lining. Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. This bearings consists of a spherical swivel with a cylindrical bore pressed into a female housing with a right hand thread and a stud insert into the bore. CF4TY is made from chrome steel and features a PTFE lined race which allows the ball to slide without the use of lubrication or the need to relubricate the bearing.
Sizes: 3/4" OD x 9/16" Thread Length x 1/2-28 Thread Size
Applications: Inch Sized Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, Textile Manufacturing Equipment, Conveyor Systems, Trucks, Automation Control Components, Motorcycles, Lawn Tractors, Boats, Industrial Machines, among others.
