Product Description

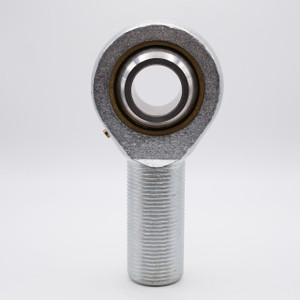

COS22ECL PTFE Lined Rod-End Ball Joint Bearing with 22mm bore and Left Hand Thread. This bearing consists of a chrome steel ball inserted into a zinc plated housing. The housing features a PTFE Liner which allows the bearing to function without the use of lubrication, allowing the bearing to be maintanence-free.
Sizes: 22mm Bore x 48mm Rod x M22x1.5 Thread Size
Applications: Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Textile Manufacturing Equipment, Conveyor Systems, Pneumatic Cylinders, Construction Equipment, Exercise Machines, Factory Automation, among others.
Product Videos
Custom Field
Inner Diameter 22mm
Outer Diameter 48mm
Overall Height 111mm
Base to Center 84mm
Thread Size M22x1.5
Thread Direction Left Hand
Ball Material Chrome Steel SAE-52100
Housing Material Zinc Plated with PTFE Liner
Lubrication None
Static Load 12,814 lbf
Dynamic Load 9,487 lbf
Country of Origin China
Interchange Numbers COS22ECL
