Product Description

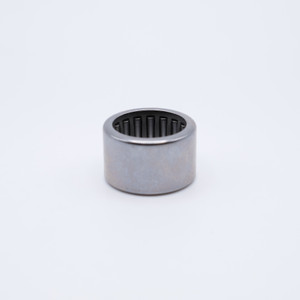

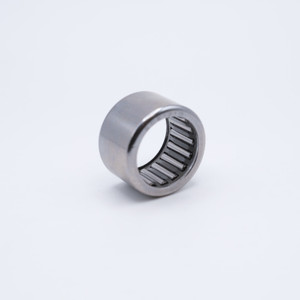

HK1612 bearing is Drawn Shell Cup Caged Needle Roller Bearing has a steel cage and is suitable for applications with high dynamic loads. The steel cage provides guidance and even spacing of the rollers for reduced friction, vibration, and noise when operated at high speeds, pre-lubricated wtih Light Oil, ensuring they are ready for immediate use upon arrival.
Sizes: ID 16mm x OD 22mm x L 12mm
Interchange : TLA1612Z, HK1612, DB1612, 16BTM2212A, RHK-1612, TBLl-1612, FJ1612, BK1612
Applications: HK1612 Drawn Shell Cup Needle Roller Bearings are used in a range of applications from Compressors to Universal Joints, Two-cycle Engines, Gearbox Layshaft, First Motion Shafts, Transmission, Agriculture Equipment, among others.
Product Videos
Custom Field
Inner Diameter 16mm
Outer Diameter 22mm
Width 12mm
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 2,181 lbf
Dynamic Load 1,709 lbf
Speed Limit 15,600 RPM
Country of Origin China
Interchange Numbers TLA1612ZOH, HK1612B, B1612, 16BFNM112A, RHK-1612T2, TBLl-1612T2, FJ-1612
