Product Description

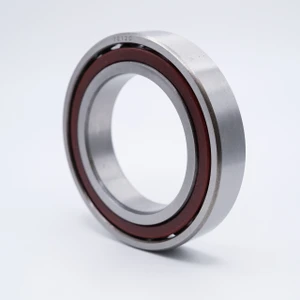

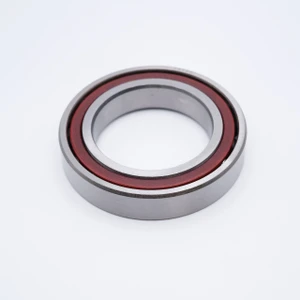

7301B is an ABEC1 Precision Angular Contact Ball Bearing with a 40 degree phenolic cage. Phenolic cages are lightweight and strong making them ideal for high speed applications and the 40 degree angular contact provides an increase in thrust load capacity relative to the inner and outer raceways. This bearing has been pre-lubricated with light oil, ensuring that it is ready for immediate use upon delivery.
Sizes: ID 12mm x OD 37mm x W 12mm = ID 0.472" x OD 1.457" x W 0.472"
Interchange: H20301, 7301B, 7301, 7301B, 7301B-TVP
Applications: Materials Handling, Machine Tools, Wind Energy Industries, Gearboxes, Pumps, Electric Motors, Clutches, Compressors, Industrial Generators, Steel Mills and other High-Speed Applications.
Product Videos
Custom Field
Inner Diameter 12mm
Outer Diameter 37mm
Width 12mm
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 1,100 lbf
Dynamic Load 2,500 lbf
Speed Limit 31,000 RPM
Country of Origin Japan
Interchange Numbers H20301, 7301B, 7301, 7301B, 7301B-TVP
