Product Description

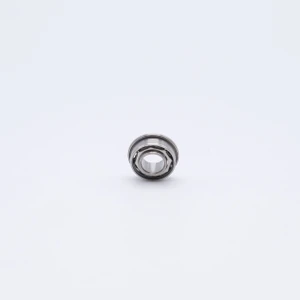

FR166 is a Chrome Steel Miniature Flange Ball Bearing with both sides Open and is pre-lubricated with light oil. This bearing features a steel flange on its outer diameter, which allows for easier locating on a housing while also preventing any axial movement of the bearing in the event of a thrust load being put onto it.
Sizes: 0.1875" ID x 0.375" OD x 0.125" Width = 4.76mm ID x 9.53mm OD x 3.18mm Width
Interchange: RIF-6632, RF166, FR-166, S6316FC, FR166, ULKZ6012X, SFR166, FR166
Applications: Miniature Engines, Robotics, Dental Equipment, 3D Printers, Testing Instruments, Pressure Rotors, Household Electrical Appliances, Surveillance Systems, among others.
Product Videos
Custom Field
Inner Diameter 3/16"
Outer Diameter 3/8"
Width 1/8"
Closure Type Open
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 62 lbf
Dynamic Load 159 lbf
Speed Limit 60,000 RPM
Country of Origin Japan
Interchange Numbers RIF-6632, RF166, FR-166, S6316FC, FR166, ULKZ6012X, SFR166, FR166
