Product Description

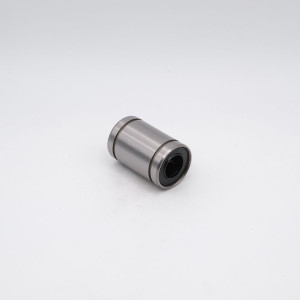

LM20UU Linear Ball Bushing Bearing
Key Features
LM20UU is a Precision Accuracy Grade Linear Bushing with a Built-In Synthetics Resin Retainer and is sealed on both sides with Rubber Seals. Our Linear Motion Bearings come pre-lubricated with Light Oil to allow it to be ready to use upon arrival. LM20UU has an extended length and the jacket is made of carbon chromium bearing steel. This linear ball bushing has a resin retainer which reduces noise during operation and is capable of smooth, precise linear motion.
Applications / Industries
LM20UU Linear bearings can be used in a variety of different applications including Lab Equipment, Packaging Equipment, CNC Machinery, Robotics, Mining, Agricultural Machinery, Automation Machinery, among others.
Product Videos
Custom Field
Inner Diameter 20mm
Outer Diameter 32mm
Length 42mm
Closure Type Rubber Sealed
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 308 lbf
Dynamic Load 194 lbf
Country of Origin China
Interchange Numbers SM20GUU, LBD20UU, LB20NYDD, N-20VUU, L20-UU, TB20-UU, LM203242UU, LM20AUU
