Product Description

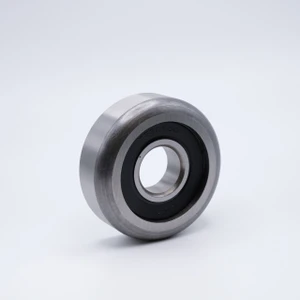

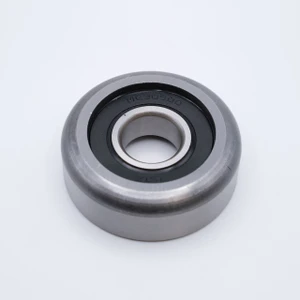

MG207FFA bearing is Mast Guide Ball Bearing Both Sides Rubber Sealed and pre-lubricated with bearing grease to allow them to be ready to use upon arrival.
Interchange : MG207-FFA, SX07A25PX2, SX07A24LLPX1, SX0731LLPX1, SX0731LL, SX0730LLPX1, SX0730LL13A, 7ESX07A25PX2, 7E-SX07A25 PX2, ZMG207ATY1Z8, MG207A, 207MZZ1, CU3203, 207WPP4, MG207-2RS-2, 3006043
Mast Guide bearings are used for high radial and occaisonal thrust loads. They typically have a thick cross section on the outer race which performs as a wheel or tire. Several profiles are available to suit the application. They are mounted on the fork carriage and provide smooth action as the forks are raised or lowered.
Product Videos
Custom Field
Inner Diameter 35mm
Outer Diameter 81.84mm
Width 27.07mm
Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 6,020 lbf
Dynamic Load 8,750 lbf
Country of Origin China
Interchange Numbers MG307DD, MG307-2RS-2, 307SZZ1, MG307SZZ1
