Product Description

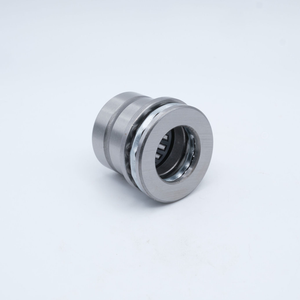

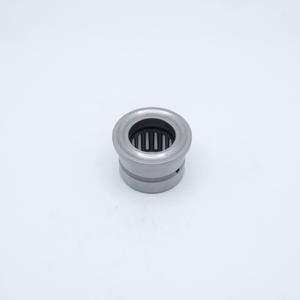

The NAXI723Z Combined Needle Roller Bearing consists of a radial needle roller bearing combined with a thrust bearing. It can accommodate both radial and axial loads. These bearings are suitable for applications where other types of locating bearing arrangements occupy too much space, where the axial loads are too heavy, the speeds are too high, or the lubricant is inadequate for arrangements with simple thrust washers.
Sizes: ID 7mm x OD 19mm x W 23mm = ID 0.275" x OD 0.748" x W 0.906"
Interchange: NKXI7-23, NAXI-723Z, NAXK723, NAX72423, NAXI-723Z
Static Radial Load: 2,065 lbf - Dynamic Radial Load: 2,495 lbf
Static Axial Load: 1,850 lbf - Dynamic Axial Load: 2,248 lbf
Applications: Combined Needle Roller Bearings are used in a range of applications from Universal Joints, Gearbox Layshafts, First Motion Shafts, Main shaft Constant Mesh Gear Wheel Bearings, Rocker Arm Pivots, Pumps, Compressors, and Transmissions, among others.
