Product Description

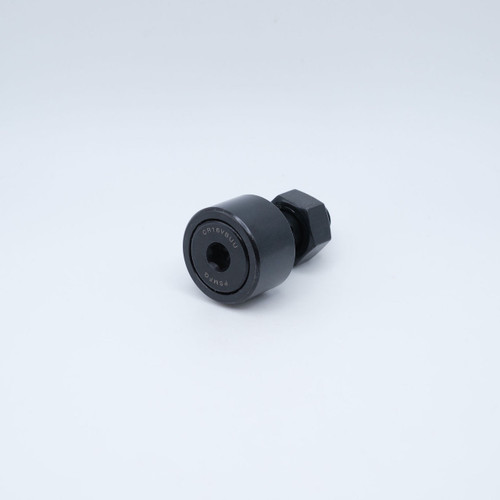

NUCF20BR Cam Follower Needle Roller Bearing
Key Features
NUCF20BR is a Full Compliment Cam Follower Needle Roller Bearing with a hexagon socket and a cylindrical outer ring. This Cam Follower features needle rollers and a stud, enclosed in a cylindrical outer ring. The hexagon socket found on the stud head allows for secure tightening when being mounted in an application. These bearings are designed for outer ring rotation with high rotational performance and are ideal for applications requiring low friction and a high load capacity.
Applications / Industries
NUCF20BR Cam Follower can support high radial and axial loads and are suitable for Cam Drives, Slideways, Conveying Equipment, Cam Mechanisms, Industrial Robots, Office Automation Machines, Machine Tools, among others.
Product Videos
Custom Field
Outer Diameter 52mm
Width 24mm
Stud Diameter 20mm
Thread Size M20x1.5
Thread Length 21mm
Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 13,061 lbf
Dynamic Load 9,689 lbf
Country of Origin China
Interchange Numbers NUCF20-BR, NUCF20BR
