Product Description

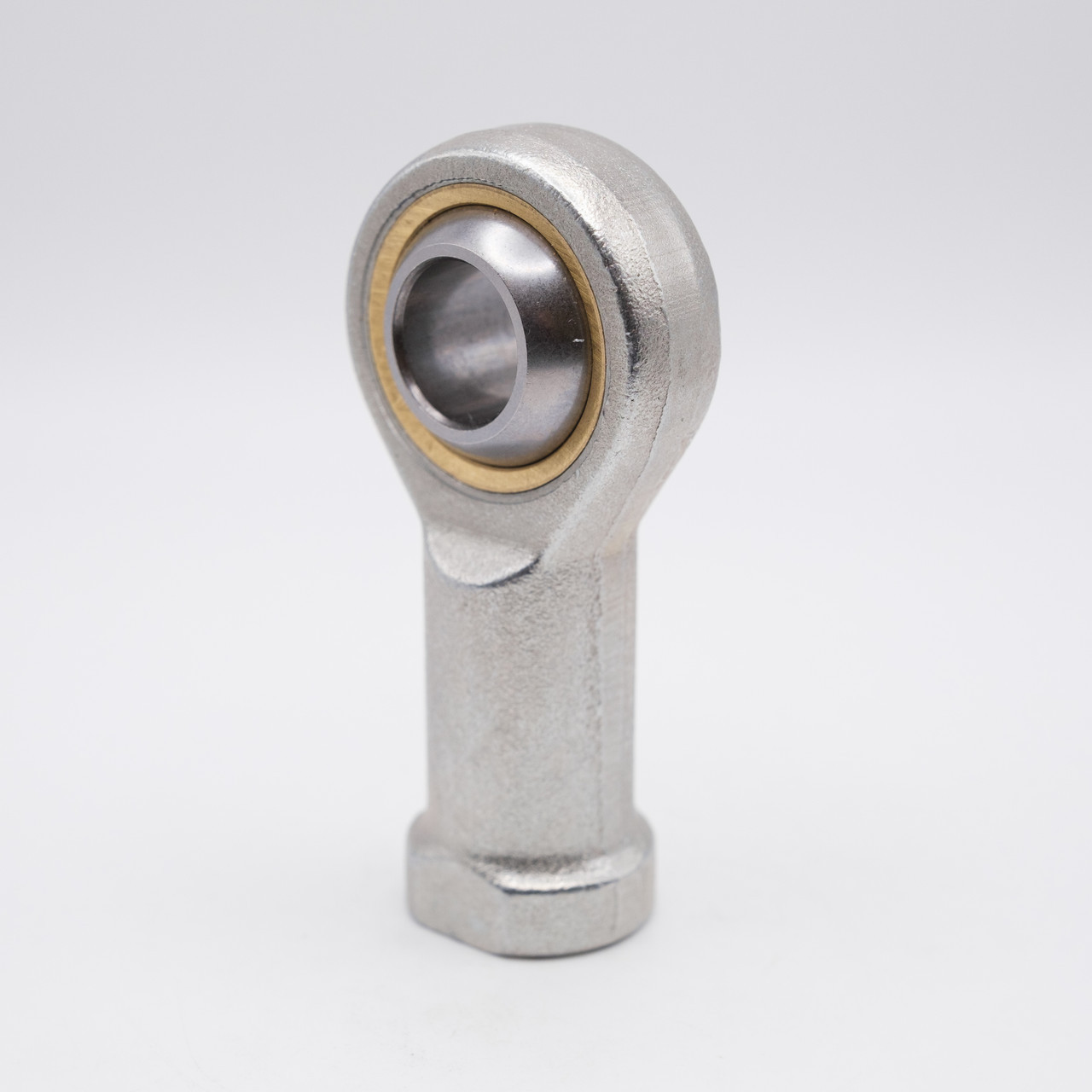

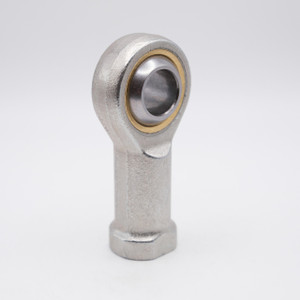

PHS12LA Rod-End Bearing
Key Features
PHS12LA bearing is a Female Rod End PilloBall Insert Type with a Left Handed Thread Ball Joint Bearing built in a Zinc Chromate Plated Body. PHS12LA Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. PHS12LA bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank.
Applications / Industries
PHS12LA Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, Textile Manufacturing Equipment, Transmission Linkages, Conveyor System Components, Industrial Machines, among others.
Product Videos
Custom Field
Inner Diameter 12mm
Outer Diameter 30mm
Overall Height 65mm
Base to Center 50mm
Thread Size M12x1.75
Thread Direction Left Hand
Ball Material Chrome Steel SAE-52100
Housing Material Zinc Plated with Brass Cage
Lubrication Light Oil
Static Load 3,799 lbf
Dynamic Load 2,945 lbf
Country of Origin Japan
Interchange Numbers GIKR12-PBLA, SIKOC12MLA, CG-M12, MG-M12, AG-M12, PHSA12LA
