Product Description

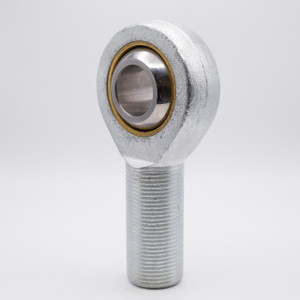

POS10ECL PTFE Lined Rod-End Ball Joint Bearing with 10mm bore and Left Hand Thread. This bearing consists of a chrome steel ball inserted into a zinc plated housing. The housing features a PTFE Liner which allows the bearing to function without the use of lubrication, allowing the bearing to be maintanence-free.
Sizes: 10mm Bore x 29mm Rod x M10 Thread Size
Applications: Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Textile Manufacturing Equipment, Conveyor Systems, Pneumatic Cylinders, Construction Equipment, Exercise Machines, Factory Automation, among others.
Product Videos
Custom Field
Inner Diameter 10mm
Outer Diameter 26mm
Overall Height 61mm
Base to Center 48mm
Thread Size M10x1.5
Thread Direction Left Hand
Ball Material Chrome Steel SAE-52100
Housing Material Zinc Plated with PTFE Liner
Lubrication None
Static Load 2,360 lbf
Dynamic Load 4,406 lbf
Country of Origin China
Interchange Numbers MMCL10K, KAL10D, GALKFR10PW, SALKB10F, SMLCV10, POS10ECL
