Product Description

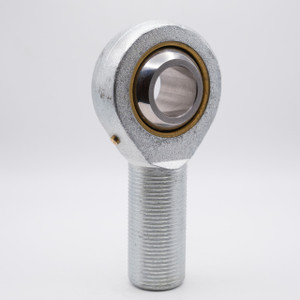

POS12EC PTFE Lined Rod-End Ball Joint Bearing with 12mm bore and Right Hand Thread. This bearing consists of a chrome steel ball inserted into a zinc plated housing. The housing features a PTFE Liner which allows the bearing to function without the use of lubrication, allowing the bearing to be maintanence-free.
Sizes: 12mm Bore x 33mm Rod x M12 Thread Size
Applications: Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Textile Manufacturing Equipment, Conveyor Systems, Pneumatic Cylinders, Construction Equipment, Exercise Machines, Factory Automation, among others.
Product Videos
Custom Field
Inner Diameter 12mm
Outer Diameter 30mm
Overall Height 69mm
Base to Center 54mm
Thread Size M12x1.75
Thread Direction Right Hand
Ball Material Chrome Steel SAE-52100
Housing Material Zinc Plated with PTFE Liner
Lubrication None
Static Load 3,080 lbf
Dynamic Load 5,890 lbf
Country of Origin China
Interchange Numbers POS12EC, GAKFR12PW, SAKB12F, SMCV12
Request for Quote Click Here
