Product Description

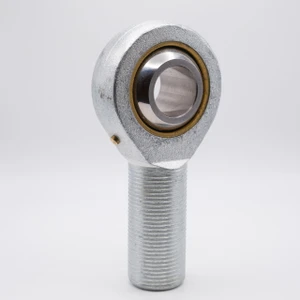

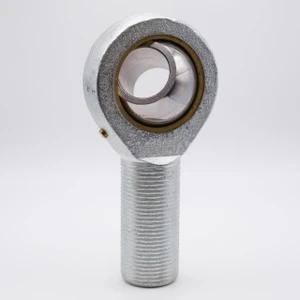

POS14ECL PTFE Lined Rod-End Ball Joint Bearing with 14mm bore and Left Hand Thread. This bearing consists of a chrome steel ball inserted into a zinc plated housing. The housing features a PTFE Liner which allows the bearing to function without the use of lubrication, allowing the bearing to be maintanence-free.
Sizes: 14mm Bore x 36mm Rod x M14 Thread Size
Applications: Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Textile Manufacturing Equipment, Conveyor Systems, Pneumatic Cylinders, Construction Equipment, Exercise Machines, Factory Automation, among others.
Product Videos
Custom Field
Inner Diameter 14mm
Outer Diameter 34mm
Overall Height 77mm
Base to Center 60mm
Thread Size M14x2
Thread Direction Left Hand
Ball Material Chrome Steel SAE-52100
Housing Material Zinc Plated with PTFE Liner
Lubrication None
Static Load 3,867 lbf
Dynamic Load 7,554 lbf
Country of Origin China
Interchange Numbers MMCL14K, KAL14D, GALKFR14PW, SALKB14F, SMLCV14, POS14ECL
