Product Description

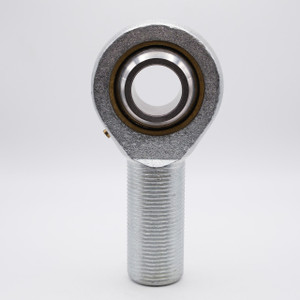

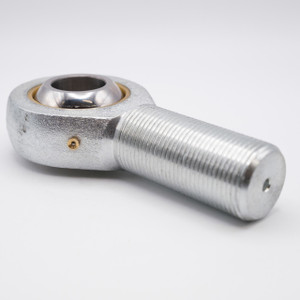

POS16EC PTFE Lined Rod-End Ball Joint Bearing with 16mm bore and Right Hand Thread. This bearing consists of a chrome steel ball inserted into a zinc plated housing. The housing features a PTFE Liner which allows the bearing to function without the use of lubrication, allowing the bearing to be maintanence-free.
Sizes: 16mm Bore x 40mm Rod x M16 Thread Size
Applications: Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Textile Manufacturing Equipment, Conveyor Systems, Pneumatic Cylinders, Construction Equipment, Exercise Machines, Factory Automation, among others.
Product Videos
Custom Field
Inner Diameter 16mm
Outer Diameter 38mm
Overall Height 85mm
Base to Center 66mm
Thread Size M16
Thread Direction Right Hand
Ball Material Chrome Steel SAE-52100
Housing Material Zinc Plated with PTFE Liner
Lubrication None
Static Load 4,743 lbf
Dynamic Load 9,442 lbf
Country of Origin China
Interchange Numbers POS16EC, GAKFR16PW, SAKB16F, SMCV16
