Product Description

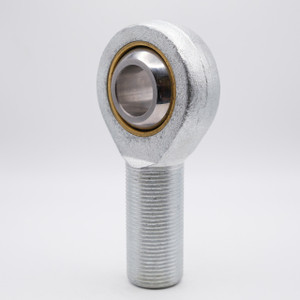

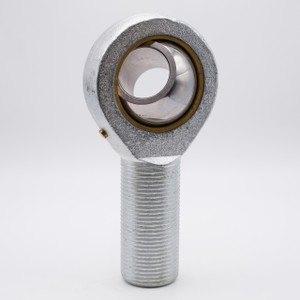

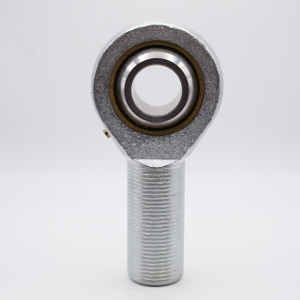

POS18ECL PTFE Lined Rod-End Ball Joint Bearing with 18mm bore and Left Hand Thread. This bearing consists of a chrome steel ball inserted into a zinc plated housing. The housing features a PTFE Liner which allows the bearing to function without the use of lubrication, allowing the bearing to be maintanence-free.
Sizes: 18mm Bore x 44mm Rod x M18x1.5 Thread Size
Applications: Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Textile Manufacturing Equipment, Conveyor Systems, Pneumatic Cylinders, Construction Equipment, Exercise Machines, Factory Automation, among others.
Product Videos
Custom Field
Inner Diameter 18mm
Outer Diameter 42mm
Overall Height 93mm
Base to Center 72mm
Thread Size M8x1.5
Thread Direction Left Hand
Ball Material Chrome Steel SAE-52100
Housing Material Zinc Plated with PTFE Liner
Lubrication None
Static Load 5,643 lbf
Dynamic Load 11,555 lbf
Country of Origin China
Interchange Numbers MMCL18K, KAL18D, GALKFR18PW, SALKB18F, SMLCV18, POS18ECL
