Product Description

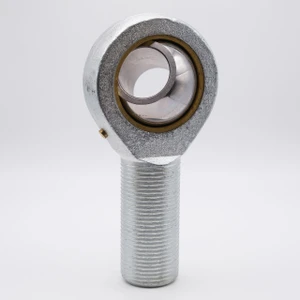

POS30L bearing is Male Rod End PilloBall Insert Type with Left Handed Thread Ball joint Bearing Self Lubricating Carbon Steel, Protective coated for corrosion resistance
Sizes: ID 30mm x OD 70mm x W 37mm - Rod 66mm
Match#: SALKAC30M, CB-M30, MB-M30, POS30L
POS30L rod-end bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. MB-M30 bearing consist of a spherical swivel with a cylindrical bore through which a bolt may pass pressed into a housing that has a threaded shank. SALKAC30M Rod end bearings are used in applications such as steering linkages, agricultural machinery, and textile manufacturing equipment, among others.
| Ball: Gcr15 Steel, heat treated, HRC58~64; Precision ground, polished Body: Carbon steel, Zinc plated.chromate treated Race: Brass Sliding contact surfaces: Steel/Brass |
 |
| Bearing No. | Dimensions(mm) | Ball | a0 | Load ratings | |||||||||
| dia | mis. angle | (KN) | |||||||||||
| d | B | C1 | d1 | d2 | d3-6g | h | L1 | L2 | Dynamic | Static | |||
| H7 | |||||||||||||
| POS30L | 30 | 37 | 25 | 34.8 | 70 | M30X2 | 110 | 66 | 145 | 50.8 | 17 | 54.3 | 94.0 |
