Product Description

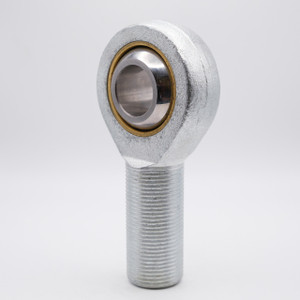

POS6ECL PTFE Lined Rod-End Ball Joint Bearing with 6mm bore and Left Hand Thread. This bearing consists of a chrome steel ball inserted into a zinc plated housing. The housing features a PTFE Liner which allows the bearing to function without the use of lubrication, allowing the bearing to be maintanence-free.
Sizes: 6mm Bore x 20mm Rod x M6 Thread Size
Applications: Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Textile Manufacturing Equipment, Conveyor Systems, Pneumatic Cylinders, Construction Equipment, Exercise Machines, Factory Automation, among others.
Product Videos
Custom Field
Inner Diameter 6mm
Outer Diameter 18mm
Overall Height 45mm
Base to Center 36mm
Thread Size M6x1
Thread Direction Left Hand
Ball Material Chrome Steel SAE-52100
Housing Material Zinc Plated with PTFE Liner
Lubrication None
Static Load 1,063 lbf
Dynamic Load 1,891 lbf
Country of Origin China
Interchange Numbers MMCL6K, KAL6D, GALKFR6PW, SALKB6F, SMLCV6, POS6ECL
Request for Quote Click Here
